DRV411 - Sensor Signal Conditioning-IC

Description

The DRV411 is designed to condition InSb Hall elements for use in closed-loop current-sensor modules.

The DRV411 provides precision excitation circuitry for the Hall-element effectively eliminating the offset and offset-drift of the Hall element.

Features

  • 1.
  • 23 Optimized for Symmetric Hall-Elements (for example, AKM HW-322, HW-302, or similar).
  • Spinning Current Hall Sensor Excitation.
  • Elimination of Hall Sensor Offset and Drift.
  • Elimination of 1/f Noise.
  • Extended Current Measurement Range.
  • H-Bridge Drive Capability: 250 mA.
  • Precision Difference Amplifier:.
  • Offset and Drift: 100 µV (max), 2 µV/°C (max).
  • System Bandwidth: 200 kHz.
  • Precision Reference:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DRV401 Sensor Signal Conditioning IC Burr-Brown
DRV101 PWM SOLENOID/VALVE DRIVER Burr-Brown Corporation
DRV102 PWM SOLENOID/VALVE DRIVER Burr-Brown Corporation
DRV103 PWM LOW-SIDE DRIVER Burr-Brown Corporation
DRV104 1.2A PWM High-Side Driver Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
DRV401 Sensor Signal Conditioning IC
DRV401-EP SENSOR SIGNAL CONDITIONING-IC
DRV401-Q1 Sensor Signal Conditioning Device
DRV421 Integrated Magnetic Fluxgate Sensor
DRV425 Fluxgate Magnetic-Field Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

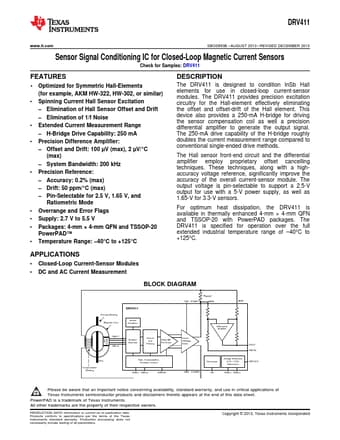

DRV411 www.ti.com SBOS693B – AUGUST 2013 – REVISED DECEMBER 2013 Sensor Signal Conditioning IC for Closed-Loop Magnetic Current Sensors Check for Samples: DRV411 FEATURES 1 •23 Optimized for Symmetric Hall-Elements (for example, AKM HW-322, HW-302, or similar) • Spinning Current Hall Sensor Excitation – Elimination of Hall Sensor Offset and Drift – Elimination of 1/f Noise • Extended Current Measurement Range – H-Bridge Drive Capability: 250 mA • Precision Difference Amplifier: – Offset and Drift: 100 µV (max), 2 µV/°C (max) – System Bandwidth: 200 kHz • Precision Reference: – Accuracy: 0.2% (max) – Drift: 50 ppm/°C (max) – Pin-Selectable for 2.5 V, 1.65 V, and Ratiometric Mode • Overrange and Error Flags • Supply: 2.7 V to 5.
