DRV10983 - 12-V to 24-V 3-Phase Sensorless BLDC Motor Driver

Description

The DRV10983 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A.

The device is specifically designed for cost-sensitive, lownoise, low-external-component-count applications.

Features

  • 1 Input Voltage Range: 8 to 28 V.
  • Total Driver H + L rDS(on): 250 mΩ.
  • Drive Current: 2-A Continuous Winding Current (3-A Peak).
  • Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme.
  • Continuous Sinusoidal 180° Commutation.
  • No External Sense Resistor Required.
  • For Flexibility User May Include External Sense Resistor to Monitor Power Delivered to Motor.
  • Flexible User Interface Options:.
  • I2C Interface:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DRV101 PWM SOLENOID/VALVE DRIVER Burr-Brown Corporation
DRV102 PWM SOLENOID/VALVE DRIVER Burr-Brown Corporation
DRV103 PWM LOW-SIDE DRIVER Burr-Brown Corporation
DRV104 1.2A PWM High-Side Driver Burr-Brown Corporation
DRV1100 HIGH POWER DIFFERENTIAL DRIVER AMPLIFIER Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
DRV10983-Q1 Sensorless BLDC Motor Driver
DRV10983Z 12-V to 24-V 3-Phase Sensorless BLDC Motor Driver
DRV10987 12-V to 24-V 3-Phase Sensorless BLDC Motor Driver
DRV10963 Sensorless BLDC Motor Driver
DRV10964 Three-Phase Sinusoidal Sensorless BLDC Motor Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

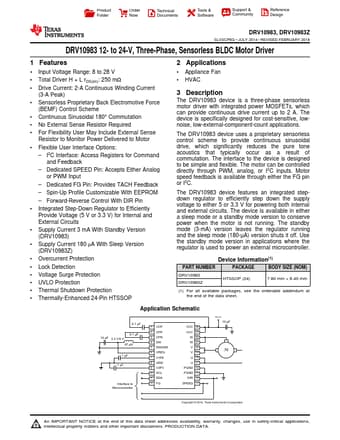

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design DRV10983, DRV10983Z SLVSCP6G – JULY 2014 – REVISED FEBRUARY 2018 DRV10983 12- to 24-V, Three-Phase, Sensorless BLDC Motor Driver 1 Features •1 Input Voltage Range: 8 to 28 V • Total Driver H + L rDS(on): 250 mΩ • Drive Current: 2-A Continuous Winding Current (3-A Peak) • Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme • Continuous Sinusoidal 180° Commutation • No External Sense Resistor Required • For Flexibility User May Include External Sense Resistor to Monitor Power Delivered to Motor • Flexible User Interface Options: – I2C Interface: Access Registers for Command and Feedback – Dedicated SPEED Pin: Accepts Either Analog or PWM Input – Dedicated FG Pin: Provid
