DP83867IR - High Immunity 10/100/1000 Ethernet Physical Layer Transceiver

Product Overview

Texas Instruments

Datasheet Details

Part number	DP83867IR
Manufacturer	Texas Instruments
File Size	3.08 MB
Description	High Immunity 10/100/1000 Ethernet Physical Layer Transceiver
Datasheet	DP83867IR Datasheet

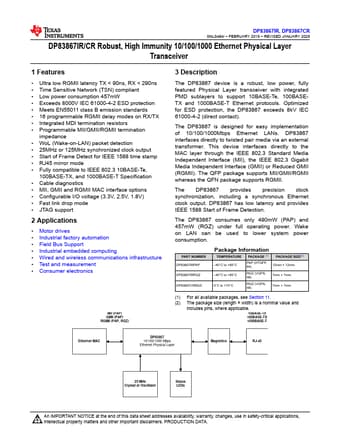

Additional preview pages of the DP83867IR datasheet.

Product details

Description

The DP83867 device is a robust, low power, fully featured Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASETX and 1000BASE-T Ethernet protocols.

Features

Ultra low RGMII latency TX < 90ns, RX < 290ns.
Time Sensitive Network (TSN) compliant.
Low power consumption 457mW.
Exceeds 8000V IEC 61000-4-2 ESD protection.
Meets EN55011 class B emission standards.
16 programmable RGMII delay modes on RX/TX.
Integrated MDI termination resistors.
Programmable MII/GMII/RGMII termination impedance.
WoL (Wake-on-LAN) packet detection.
25MHz or 125MHz synchronized clock out.
