DLP801XE - 0.8 4K+ DMD

Product Overview

Texas Instruments

Datasheet Details

Part number	DLP801XE
Manufacturer	Texas Instruments
File Size	1.53 MB
Description	0.8 4K+ DMD
Datasheet	DLP801XE Datasheet

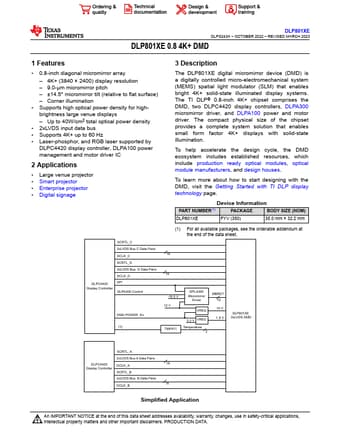

Additional preview pages of the DLP801XE datasheet.

Product details

Description

The DLP801XE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K+ solid-state illuminated display systems.

Features

0.8-inch diagonal micromirror array.
4K+ (3840 × 2400) display resolution.
9.0-µm micromirror pitch.
±14.5° micromirror tilt (relative to flat surface).
Corner illumination.
Supports high optical power density for highbrightness large venue displays.
Up to 40W/cm2 total optical power density.
2xLVDS input data bus.
Supports 4K+ up to 60 Hz.
Laser-phosphor, and RGB laser supported by DLPC4420 display contro.
