DAC7574 - Quad 12-Bit D/A Converter

Description

The DAC7574 is a low-power, quad channel, 12-bit buffered voltage output DAC.

Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved.

Features

  • Micropower Operation: 600 µA at 5 V VDD.
  • Power-On Reset to Zero.
  • +2.7 V to +5.5 V Analog Power Supply.
  • 12-Bit Monotonic.
  • I2C™ Interface Up to 3.4 Mbps.
  • Data Transmit Capability.
  • On-Chip Output Buffer Amplifier, Rail-to-Rail Operation.
  • Double-Buffered Input Register.
  • Address Support for up to Four DAC7574s.
  • Synchronous Update Support for up to 16 Channels.
  • Operation From -40°C to 105°C.
  • Sm.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DAC7512 DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC7513 DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC7528 CMOS Dual 8-Bit Buffered Multiplying DIGITAL-TO-ANALOG CONVERTER Burr-Brown Corporation
DAC7541A Low Cost 12-Bit CMOS Four-Quadrant Multiplying DIGITAL-TO-ANALOG CONVERTER Burr-Brown Corporation
DAC7545 CMOS 12-Bit Multiplying DIGITAL-TO-ANALOG CONVERTER Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
DAC7571 12-Bit D/A Converter
DAC7573 Quad 12-Bit D/A Converter
DAC7578 D/A Converter
DAC7551-Q1 16-Bit D/A Converter
DAC7552 Dual 12-Bit D/A Converter

Full PDF Text Transcription

Click to expand full text

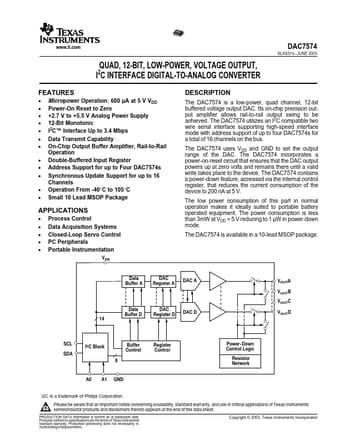

www.ti.com QUAD, 12-BIT, LOW-POWER, VOLTAGE OUTPUT, I2C INTERFACE DIGITAL-TO-ANALOG CONVERTER DAC7574 SLAS375 – JUNE 2003 FEATURES • Micropower Operation: 600 µA at 5 V VDD • Power-On Reset to Zero • +2.7 V to +5.5 V Analog Power Supply • 12-Bit Monotonic • I2C™ Interface Up to 3.4 Mbps • Data Transmit Capability • On-Chip Output Buffer Amplifier, Rail-to-Rail Operation • Double-Buffered Input Register • Address Support for up to Four DAC7574s • Synchronous Update Support for up to 16 Channels • Operation From -40°C to 105°C • Small 10 Lead MSOP Package APPLICATIONS • Process Control • Data Acquisition Systems • Closed-Loop Servo Control • PC Peripherals • Portable Instrumentation VDD DESCRIPTION The DAC7574 is a low-power, quad channel, 12-bit buffered voltage output DAC.
