DAC7562 - Low-Power Buffered Voltage-Output DACs

Name: DAC7562
SKU: DAC7562-1407342

Texas Instruments

📥 Download Datasheet

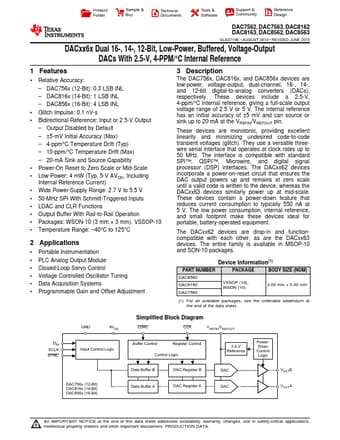

DAC7562 Datasheet Preview — Preview of DAC7562 PDF

Datasheet Details

Part number	DAC7562
Manufacturer	Texas Instruments
File Size	2.48 MB
Description	Low-Power Buffered Voltage-Output DACs
Datasheet	DAC7562-etcTI.pdf

DAC7562 Product details

Description

The DAC756x, DAC816x, and DAC856x devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively.

Features

1 Relative Accuracy:.
DAC756x (12-Bit): 0.3 LSB INL.
DAC816x (14-Bit): 1 LSB INL.
DAC856x (16-Bit): 4 LSB INL.
Glitch Impulse: 0.1 nV-s.
Bidirectional Reference: Input or 2.5-V Output.
Output Disabled by Default.
±5-mV Initial Accuracy (Max).
4-ppm°C Temperature Drift (Typ).
10-ppm/°C Temperature Drift (Max).
20-mA Sink and Source Capability.
Power-On Reset to Zero Scale or Mid-Scale.
