DAC7311 - Digital-to-Analog Converter

Description

The 8-bit DAC5311, 10-bit DAC6311, and 12-bit DAC7311 (DACx311) are low-power, single-channel, voltage output digital-to-analog converters (DACs).

Features

  • Relative accuracy:.
  • 0.25 LSB INL (DAC5311: 8-bit).
  • 0.5 LSB INL (DAC6311: 10-bit).
  • 1 LSB INL (DAC7311: 12-bit).
  • microPower operation: 80 μA at 2.0 V.
  • Power-down: 0.5 μA at 5 V, 0.1 μA at 2.0 V.
  • Wide power supply: 2.0 V to 5.5 V.
  • Power-on reset to zero scale.
  • Straight binary data format.
  • Low power serial interface with Schmitt-triggered inputs: up to 50 MHz.
  • On-chip output buffer amplifier, rail-to-.

📥 Download Datasheet

📁 Similar Datasheet

  • DAC701 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC702 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC703 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown)
  • DAC707 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC708 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC709 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC70BH - 16-Bit Digital-To-Analog Converter (Burr-Brown)
  • DAC712 - 16-BIT DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC714 - 16-Bit DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC715 - 16-BIT DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

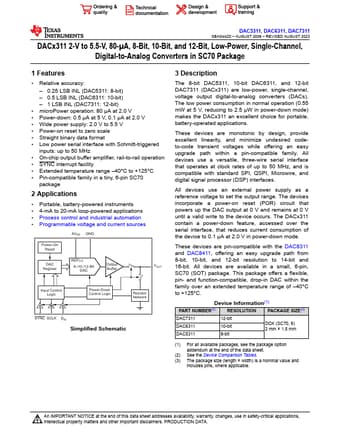

DAC5311, DAC6311, DAC7311 SBAS442D – AUGUST 2008 – REVISED AUGUST 2023 DACx311 2-V to 5.5-V, 80-µA, 8-Bit, 10-Bit, and 12-Bit, Low-Power, Single-Channel, Digital-to-Analog Converters in SC70 Package 1 Features • Relative accuracy: – 0.25 LSB INL (DAC5311: 8-bit) – 0.5 LSB INL (DAC6311: 10-bit) – 1 LSB INL (DAC7311: 12-bit) • microPower operation: 80 μA at 2.0 V • Power-down: 0.5 μA at 5 V, 0.1 μA at 2.0 V • Wide power supply: 2.0 V to 5.
