DAC70004 - D/A Converter

Description

The DAC80004/70004/60004 (DACx0004) are highly accurate, low-power, voltage-output, quad-channel, 16-, 14-, 12-bit digital-to-analog converters (DACs) respectively.

The DACx0004 devices are ensured monotonic by design and offer excellent linearity of less than 1 LSB (Max).

Features

  • 1 True 16-Bit Performance: 1 LSB INL/DNL (Max).
  • Ultra Low Glitch Energy: 1 nV-s.
  • Wide Power-Supply Range: 2.7 V to 5.5 V.
  • Output Buffer with Rail-to-Rail Operation.
  • Current Consumption: 1 mA/Channel.
  • 50-MHz, 4- or 3-Wire SPI Compatible Interface.
  • SDO Pin for Readback and Daisy Chain.
  • Power-On Reset to Zero or Mid Scale.
  • Temperature Range:.
  • 40°C to +125°C.
  • Multiple Packages:.
  • Tiny 14-Pin VSO.

📥 Download Datasheet

📁 Similar Datasheet

  • DAC701 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC702 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC703 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown)
  • DAC707 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC708 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC709 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC70BH - 16-Bit Digital-To-Analog Converter (Burr-Brown)
  • DAC712 - 16-BIT DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC714 - 16-Bit DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC715 - 16-BIT DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

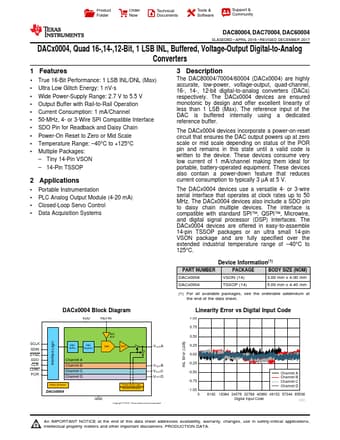

Product Folder Order Now Technical Documents Tools & Software Support & Community DAC80004, DAC70004, DAC60004 SLASED6D – APRIL 2016 – REVISED DECEMBER 2017 DACx0004, Quad 16-,14-,12-Bit, 1 LSB INL, Buffered, Voltage-Output Digital-to-Analog Converters 1 Features •1 True 16-Bit Performance: 1 LSB INL/DNL (Max) • Ultra Low Glitch Energy: 1 nV-s • Wide Power-Supply Range: 2.7 V to 5.
