DAC34H84 - 1.25 GSPS Digital-to-Analog Converter

Texas Instruments

📥 Download Datasheet

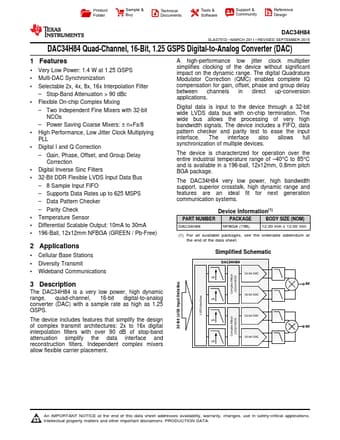

DAC34H84 Datasheet Preview — Preview of DAC34H84 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAC34H84
Manufacturer	Texas Instruments
File Size	1.88 MB
Description	1.25 GSPS Digital-to-Analog Converter
Datasheet	DAC34H84-etcTI.pdf

DAC34H84 Product details

Description

The DAC34H84 is a very low power, high dynamic range, quad-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.25 GSPS.

Features

1 Very Low Power: 1.4 W at 1.25 GSPS.
Multi-DAC Synchronization.
Selectable 2x, 4x, 8x, 16x Interpolation Filter.
Stop-Band Attenuation > 90 dBc.
Flexible On-chip Complex Mixing.
Two Independent Fine Mixers with 32-bit NCOs.
Power Saving Coarse Mixers: ± n×Fs/8.
High Performance, Low Jitter Clock Multiplying PLL.
Digital I and Q Correction.
Gain, Phase, Offset, and Group Delay Correction.
Digital I.
