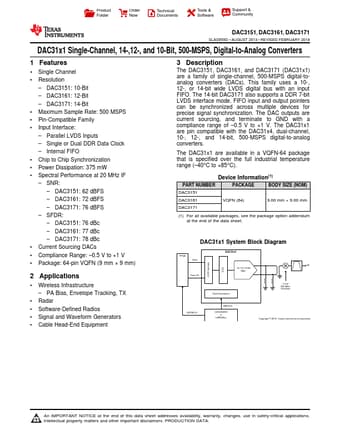

DAC3171 Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC3171, DAC3151. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAC3171, DAC3151
Manufacturer	Texas Instruments
File Size	2.32 MB
Description	Digital-to-Analog Converters
Datasheet	DAC3151-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DAC3171, DAC3151. Please refer to the document for exact specifications by model.

DAC3171 Product details

Description

The DAC3151, DAC3161, and DAC3171 (DAC31x1) are a family of single-channel, 500-MSPS digital-toanalog converters (DACs). 0.5 V to +1 V.

Features

1 Single Channel.
Resolution.
DAC3151: 10-Bit.
DAC3161: 12-Bit.
DAC3171: 14-Bit.
Maximum Sample Rate: 500 MSPS.
Pin-Compatible Family.
Input Interface:.
Parallel LVDS Inputs.
Single or Dual DDR Data Clock.
Internal FIFO.
Chip to Chip Synchronization.
Power Dissipation: 375 mW.
Spectral Performance at 20 MHz IF.
SNR:.
DAC3151: 62 dBFS.
DAC3161: 7.
