DAC2902 - DIGITAL-TO-ANALOG CONVERTER

Description

The DAC2902 is a monolithic, 12-bit, dual-channel, high-speed Digital-to-Analog Converter (DAC), and is optimized to provide high dynamic performance while dissipating only 310mW.

Features

  • q 125MSPS UPDATE RATE q SINGLE SUPPLY: +3.3V or +5V q HIGH SFDR: 70dB at fOUT = 20MHz q LOW GLITCH: 2pV-s q LOW POWER: 310mW q.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DAC2902 125MSPS DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC2900 Dual/ 10-Bit/ 125MSPS DIGITAL-TO-ANALOG CONVERTER Burr-Brown Corporation
DAC2904 125MSPS DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC2932 40MSPS DIGITAL-TO-ANALOG CONVERTER Burr-Brown
DAC20 2 Digit BCD High Speed Multiplying D/A Converter Precision Monolithics

Other Datasheets by Texas Instruments

Part Number Description
DAC2900 DIGITAL-TO-ANALOG CONVERTER
DAC2904 DIGITAL-TO-ANALOG CONVERTER
DAC0800 8-Bit Digital-to-Analog Converters
DAC0802 8-Bit Digital-to-Analog Converters
DAC081C081 8-Bit Micro Power Digital-to-Analog Converter

Full PDF Text Transcription

Click to expand full text

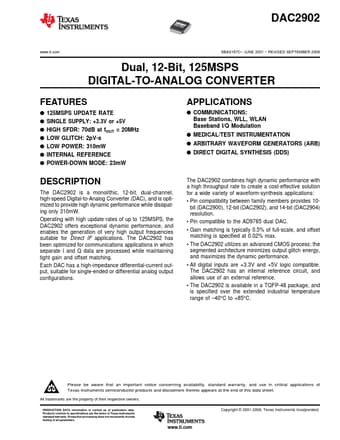

DAC2902 DAC2902 www.ti.com SBAS167C– JUNE 2001 – REVISED SEPTEMBER 2008 Dual, 12-Bit, 125MSPS DIGITAL-TO-ANALOG CONVERTER FEATURES q 125MSPS UPDATE RATE q SINGLE SUPPLY: +3.3V or +5V q HIGH SFDR: 70dB at fOUT = 20MHz q LOW GLITCH: 2pV-s q LOW POWER: 310mW q INTERNAL REFERENCE q POWER-DOWN MODE: 23mW APPLICATIONS q COMMUNICATIONS: Base Stations, WLL, WLAN Baseband I/Q Modulation q MEDICAL/TEST INSTRUMENTATION q ARBITRARY WAVEFORM GENERATORS (ARB) q DIRECT DIGITAL SYNTHESIS (DDS) DESCRIPTION The DAC2902 is a monolithic, 12-bit, dual-channel, high-speed Digital-to-Analog Converter (DAC), and is optimized to provide high dynamic performance while dissipating only 310mW.
