CY74FCT16240T - 16-Bit Buffers/Line Drivers

Description

These 16-bit buffer/line drivers are used in memory driver, clock driver, or other bus interface applications, where high speed and low power are required.

With flow-through pinout and small shrink packaging, board layout is simplified.

Features

  • Ioff supports partial-power-down mode operation.
  • Edge-rate control circuitry for significantly improved noise characteristics.
  • Typical output skew < 250 ps.
  • ESD > 2000V.
  • TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages.
  • Industrial temperature range of.
  • 40˚C to +85˚C.
  • VCC = 5V ± 10% CY74FCT16240T Features:.
  • 64 mA sink current, 32 mA source current.
  • Typical VOLP (ground bounce).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY74FCT16245T 16-Bit Transceiver Cypress Semiconductor
CY74FCT162245T 16-Bit Transceiver Cypress Semiconductor
CY74FCT162H245T 16-Bit Transceiver Cypress Semiconductor
CY74FCT16445T 16-Bit Transceiver Cypress Semiconductor
CY74FCT2543T 8 Bit Latched Transceiver Cypress Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
CY74FCT16244T 16-Bit Buffers/Line Drivers
CY74FCT16245T 16-Bit Transceivers
CY74FCT162240T 16-Bit Buffers/Line Drivers
CY74FCT162244T 16-Bit Buffers/Line Drivers
CY74FCT162245T 16-Bit Transceivers

Full PDF Text Transcription

Click to expand full text

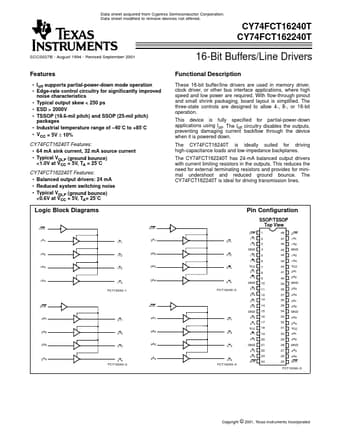

1CY74FCT162240T Data sheet acquired from Cypress Semiconductor Corporation. Data sheet modified to remove devices not offered. CY74FCT16240T CY74FCT162240T SCCS027B - August 1994 - Revised September 2001 Features • Ioff supports partial-power-down mode operation • Edge-rate control circuitry for significantly improved noise characteristics • Typical output skew < 250 ps • ESD > 2000V • TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages • Industrial temperature range of –40˚C to +85˚C • VCC = 5V ± 10% CY74FCT16240T Features: • 64 mA sink current, 32 mA source current • Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25˚C CY74FCT162240T Features: • Balanced output drivers: 24 mA • Reduced system switching noise • Typical VOLP (ground bounce) <0.
