CDCM61002 - Low-Jitter Clock Generator

Product Overview

Texas Instruments

Datasheet Details

Part number	CDCM61002
Manufacturer	Texas Instruments
File Size	1.22 MB
Description	Low-Jitter Clock Generator
Datasheet	CDCM61002 Datasheet

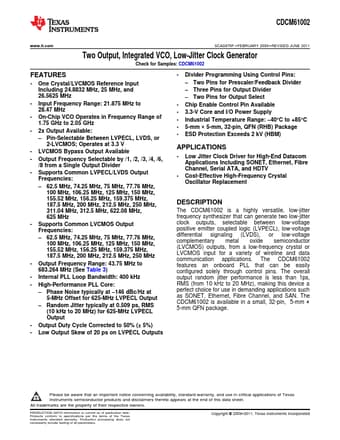

Additional preview pages of the CDCM61002 datasheet.

Product details

Description

The CDCM61002 is a highly versatile, low-jitter frequency synthesizer that can generate two low-jitter clock outputs, selectable between low-voltage positive emitter coupled logic (LVPECL), low-voltage differential signaling (LVDS), or low-voltage complementary metal oxide semiconductor (LVCMOS) outputs, from a low-frequency crystal or LVCMOS input for a variety of wireline and data communication applications.

Features

1.
2 One Crystal/LVCMOS Reference Input Including 24.8832 MHz, 25 MHz, and 26.5625 MHz.
Input Frequency Range: 21.875 MHz to 28.47 MHz.
On-Chip VCO Operates in Frequency Range of 1.75 GHz to 2.05 GHz.
2x Output Available:.
Pin-Selectable Between LVPECL, LVDS, or 2-LVCMOS; Operates at 3.3 V.
LVCMOS Bypass Output Available.
Output Frequency Selectable by /1, /2, /3, /4, /6, /8 from a Single Output Divider.
Supports Common LVPEC.
