CDC391, 1-Line To 9-Line Clock Driver

The CDC391 contains a clock-driver circuit that distributes one input signal to six outputs with minimum skew for clock distribution.

Through the use of the polarity-control (T/C) inputs, various combinations of true and complementary outputs can be obtained.

The output-enable (OE) input is provided

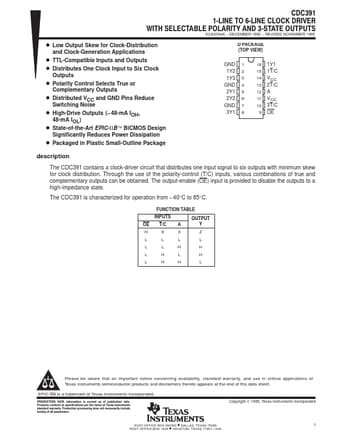

CDC391 1ĆLINE TO 6ĆLINE CLOCK DRIVER WITH SELECTABLE POLARITY AND 3ĆSTATE OUTPUTS SCAS334A DECEMBER 1992 REVISED NOVEMBER 1995 D Low Output Skew for Clock-Distribution and Clock-Generation Applications D TTL-Compatible Inputs and Outputs D Distributes One Clock Input to Six Clock Outputs D Polarity Control Selects True or Complementary Outputs D Distributed VCC and GND Pins Reduce Switching Noise D High-Drive Outputs ( 48-mA IOH, 48-mA IOL) D State-of-the-Art EPIC-ΙΙ
