CD74HCT20E - Dual 4-Input NAND Gates

Product Overview

Texas Instruments

Datasheet Details

Part number	CD74HCT20E
Manufacturer	Texas Instruments
File Size	1.04 MB
Description	Dual 4-Input NAND Gates
Datasheet	CD74HCT20E Datasheet
Note	This datasheet PDF includes multiple part numbers: CD74HCT20E, CD74HCT20. Please refer to the document for exact specifications by model.

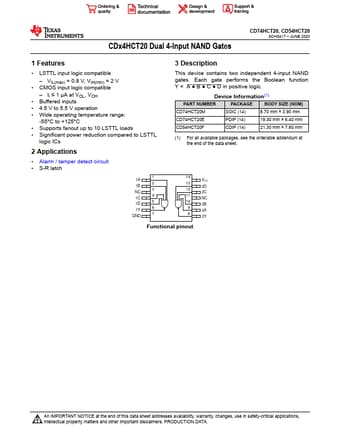

Additional preview pages of the CD74HCT20E datasheet.

Product details

Description

LSTTL input logic compatible VIL(max) = 0.8 V, VIH(min) = 2 V CMOS input logic compatible II ≤ 1 µA at VOL, VOH Buffered inputs 4.5 V to 5.5 V operation Wide operating temperature range: -55°C to +125°C Supports fanout up to 10 LSTTL loads Significant power reduction compared to LSTTL logic ICs 2 Applications This device contains two independent 4-input NAND gates.Each gate performs the Boolean function
