CD74HC4052 - High-Speed CMOS Logic Analog Multiplexers/Demultiplexers

Download the CD74HC4052 datasheet PDF. This datasheet also covers the CD74HC4051 variant, as both devices belong to the same high-speed cmos logic analog multiplexers/demultiplexers family and are provided as variant models within a single manufacturer datasheet.

Description

The CDx4HC405x and CDx4HCT405x device is a digitally controlled analog switch that uses silicon gate CMOS technology to achieve operating speeds similar to LSTTL with the low-power consumption of standard CMOS integrated circuits.

Features

  • Qualified for automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CD74HC4051-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CD74HC22106 QMOS 8 x 8 x 1 Crosspoint Switches with Memory Control Intersil Corporation
CD74HC373 OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373E OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373M OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373M96 OCTAL TRANSPARENT D-TYPE LATCHES NXP

Other Datasheets by Texas Instruments

Part Number Description
CD74HC4052E High-Speed CMOS Logic Analog Multiplexers/Demultiplexers
CD74HC4050 High-Speed CMOS Logic
CD74HC4051 High-Speed CMOS Logic Analog Multiplexers/Demultiplexers
CD74HC4051-EP Analog Multiplexer and Demultiplexer
CD74HC4051-Q1 Automotive Analog Multiplexer or Demultiplexer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

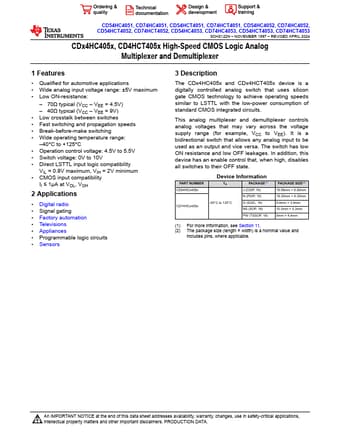

CD54HC4051, CD74HC4051, CD54HCT4051, CD74HCT4051, CD54HC4052, CD74HC4052, CD54HCT4052, CD74HCT4052, CD54HC4053, CD74HC4053, CD54HCT4053, CD74HCT4053 SCHS122N – NOVEMBER 1997 – REVISED APRIL 2024 CDx4HC405x, CD4HCT405x High-Speed CMOS Logic Analog Multiplexer and Demultiplexer 1 Features • Qualified for automotive applications • Wide analog input voltage range: ±5V maximum • Low ON-resistance: – 70Ω typical (VCC – VEE = 4.5V) – 40Ω typical (VCC – VEE = 9V) • Low crosstalk between switches • Fast switching and propagation speeds • Break-before-make switching • Wide operating temperature range: –40°C to +125°C • Operation control voltage: 4.5V to 5.5V • Switch voltage: 0V to 10V • Direct LSTTL input logic compatibility VIL = 0.
