CD74HC377PW - Octal D-Type Flip-Flop

Download the CD74HC377PW datasheet PDF. This datasheet also covers the CD74HC377 variant, as both devices belong to the same octal d-type flip-flop family and are provided as variant models within a single manufacturer datasheet.

Description

Buffered Common Clock Buffered Inputs Typical Propagation VCC = 5V, TA = 25oC Delay at CL = 15pF, - 14 ns (HC Types - 16 ns (HCT Types) Fanout (Over Temperature Range) - Standard Outputs 10 LSTTL Loads - Bus Driver Outpu

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CD74HC377-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CD74HC373 OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373E OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373M OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC373M96 OCTAL TRANSPARENT D-TYPE LATCHES NXP
CD74HC393 Dual 4-Stage Binary Counter Harris

Other Datasheets by Texas Instruments

Part Number Description
CD74HC377PWR Octal D-Type Flip-Flop
CD74HC377 Octal D-Type Flip-Flop
CD74HC377E Octal D-Type Flip-Flop
CD74HC377M Octal D-Type Flip-Flop
CD74HC377M96 Octal D-Type Flip-Flop

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

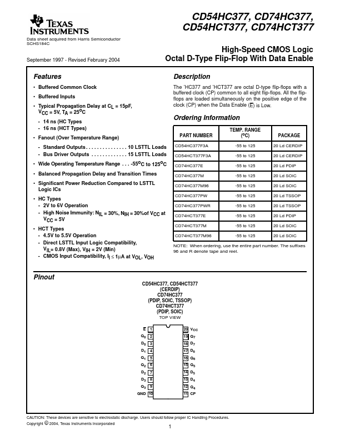

Data sheet acquired from Harris Semiconductor SCHS184C September 1997 - Revised February 2004 CD54HC377, CD74HC377, CD54HCT377, CD74HCT377 High-Speed CMOS Logic Octal D-Type Flip-Flop With Data Enable [ /Title (CD74 HC377 , CD74 HCT37 7) /Subject (High Speed CMOS Logic Octal DType Flip- Features Description • Buffered Common Clock • Buffered Inputs • Typical Propagation VCC = 5V, TA = 25oC Delay at CL = 15pF, - 14 ns (HC Types - 16 ns (HCT Types) • Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads • Wide Operating Temperature Range . . .
