The CD74FCT2952A by Texas Instruments is a BiCMOS OCTAL BUS TRANSCEIVER AND REGISTER. Below is the official datasheet preview.
| Part number | CD74FCT2952A |
|---|---|
| Manufacturer | Texas Instruments |
| File Size | 156.14 KB |
| Description | BiCMOS OCTAL BUS TRANSCEIVER AND REGISTER |
| Datasheet |
 CD74FCT2952A-etcTI.pdf
|
|
|

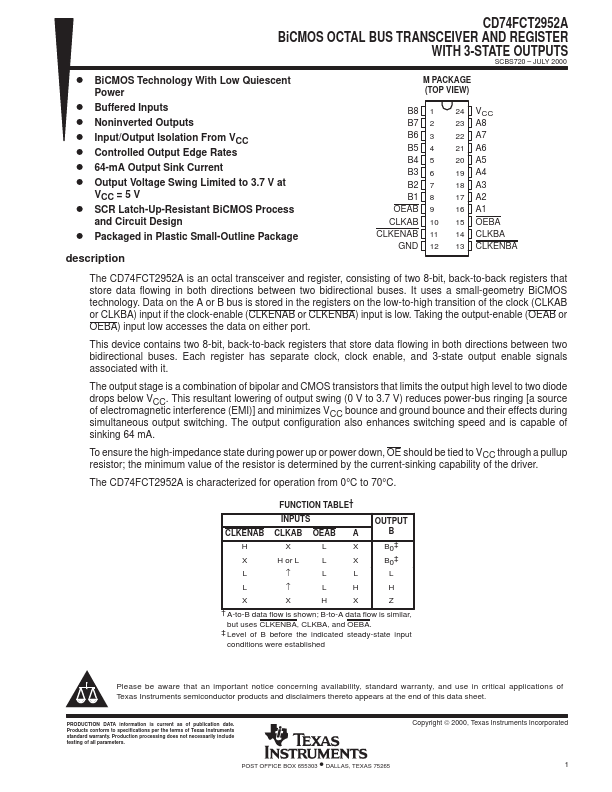

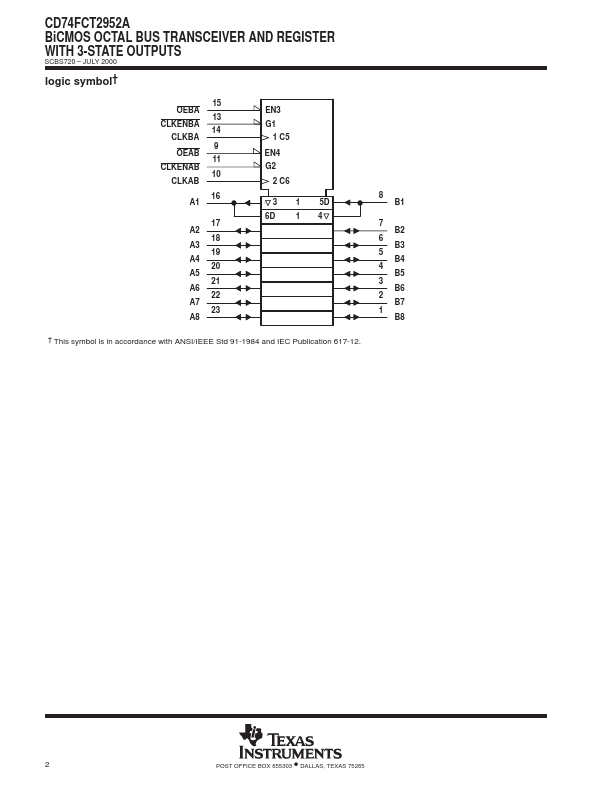

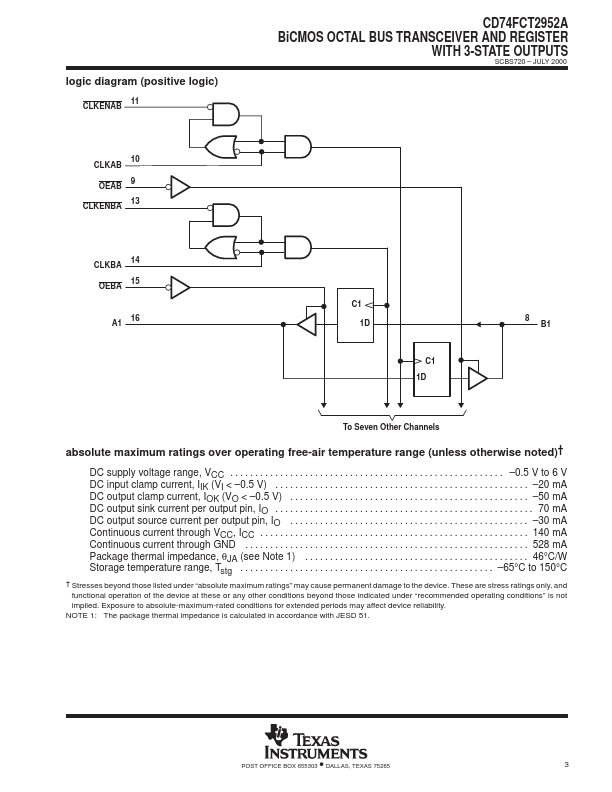

M PACKAGE (TOP VIEW) B8 1 B7 2 B6 3 B5 4 B4 5 B3 6 B2 7 B1 8 OEAB 9 CLKAB 10 CLKENAB 11 GND 12 24 VCC 23 A8 22 A7 21 A6 20 A5 19 A4 18 A3 17 A2 16 A1 15 OEBA 14 CLKBA 13 CLKENBA The CD74FCT2952A is an octal transceiver and register, consisting of two 8-bit, back-to-back registers that store data flowing in both directions between two bidirectional buses.It uses a small-geometry BiCMOS technology.Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (C
