CD54HC4046A - Phase-Locked Loop

Product Overview

📥 Download Datasheet

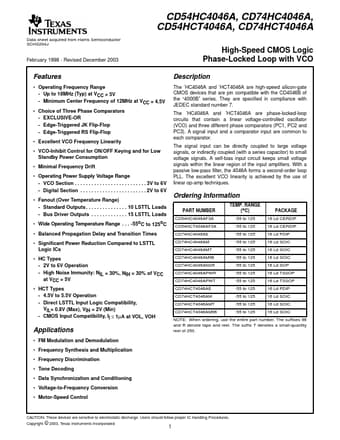

Datasheet preview – CD54HC4046A

Datasheet Details

Part number CD54HC4046A
Manufacturer Texas Instruments
File Size 925.51 KB
Description Phase-Locked Loop
Datasheet download datasheet CD54HC4046A Datasheet
Additional preview pages of the CD54HC4046A datasheet.

Product details

Description

Operating Frequency Range - Up to 18MHz (Typ) at VCC = 5V - Minimum Center Frequency of 12MHz at VCC = 4.5V Choice of Three Phase Comparators - EXCLUSIVE-OR - Edge-Triggered JK Flip-Flop - Edge-Triggered RS Flip-Flop Excellent VCO Frequency Linearity VCO-Inhibit Control for ON/OFF Keying and for Low Standby Power Consumption Minimal Frequency Drift Operating Power Supply Voltage Range - VCO Section
