CC2590 - 14-dBm-output power

Description

CC2590 is a cost-effective and high performance RF Front End for low-power and low-voltage 2.4-GHz wireless applications.

CC2590 is a range extender for all existing and future 2.4-GHz low-power RF transceivers, transmitters and System-on-Chip products from Texas Instruments.

Features

  • 1.
  • Seamless Interface to 2.4-GHz Low Power RF Devices from Texas Instruments.
  • Up to +14-dBm (25mW) Output Power.
  • 6-dB Typical Improved Sensitivity on CC24xx and CC2500, CC2510, and CC2511.
  • Few External Components.
  • Integrated Switches.
  • Integrated Matching Network.
  • Integrated Balun.
  • Integrated Inductors.
  • Integrated PA.
  • Integrated LNA.
  • Digital Control of LNA Gain by HGM Pin.
  • 100-nA in Power D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CC25-11xxx FOUR DIGIT NUMERIC DISPLAYS Kingbright Corporation
CC25-12xxx FOUR DIGIT NUMERIC DISPLAYS Kingbright Corporation
CC25-2403Sx-E Insulation type DC-DC converter TDK-Lambds
CC25-2405Sx-E Insulation type DC-DC converter TDK-Lambds
CC25-E Insulation type DC-DC converter TDK-Lambds

Other Datasheets by Texas Instruments

Part Number Description
CC2591 2.4-GHz RF Front-End
CC2592 2.4-GHz Range Extender
CC2595 2.4-GHz RF FRONT-END
CC2595 2.4 GHz RF Front End (Rev. A)
CC2500 RF Transceiver

Full PDF Text Transcription

Click to expand full text

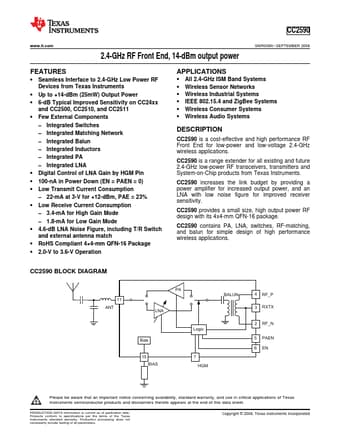

CC2590 www.ti.com ........................................................................................................................................................................................ SWRS080 – SEPTEMBER 2008 2.4-GHz RF Front End, 14-dBm output power FEATURES 1 • Seamless Interface to 2.
