BQ500100 High-Side Current Sensor

Texas Instruments

BQ500100 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community bq500100 20-V, High-Side Current Sensor for Wireless Chargin.
The bq500100 is a voltage output, current-shunt monitor for wireless charging to facilitate foreign object detection (FOD).

BQ500100 Features

* 1 Wide Common-Mode Range: 0 V to 20 V
* Offset Voltage: ±150 μV (Maximum)
* Enables Shunt Drops of 10-mV Full-Scale
* Accuracy: ±2% Gain Error (Maximum Overtemperature)
* Fixed Gain: 50 V/V
* Low Quiescent Current: 100 μA (Maximum)
* Small Pac

BQ500100 Applications

* WPC (Qi) 1.2-Compliant Wireless Power Transmitters for 15-W or 5-W Systems
* Proprietary Wireless Chargers and Transmitters
* Wirelessly-Powered Industrial and Medical Systems

📥 Download Datasheet

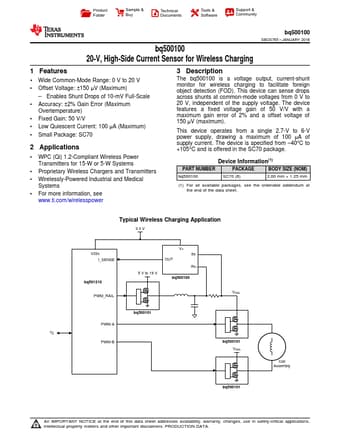

BQ500100 Datasheet Preview — Preview of BQ500100 PDF

Datasheet Details

Part number: BQ500100
Manufacturer: Texas Instruments ↗
File Size: 356.85 KB
Datasheet: BQ500100-etcTI.pdf
Description: High-Side Current Sensor
