BQ24104, BQ24100 - Li-Ion/Li-Polymer Charger

Name: BQ24104
SKU: BQ24104-1510646

Texas Instruments

📥 Download Datasheet

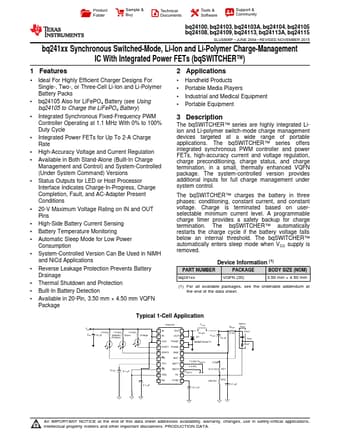

BQ24104 Datasheet Preview — This datasheet PDF includes multiple part numbers: BQ24104, BQ24100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BQ24104, BQ24100
Manufacturer	Texas Instruments
File Size	1.36 MB
Description	Li-Ion/Li-Polymer Charger
Datasheet	BQ24100-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: BQ24104, BQ24100. Please refer to the document for exact specifications by model.

BQ24104 Product details

Description

The bqSWITCHER™ series are highly integrated Liion and Li-polymer switch-mode charge management devices targeted at a wide range of portable applications.

Features

1 Ideal For Highly Efficient Charger Designs For Single-, Two-, or Three-Cell Li-Ion and Li-Polymer Battery Packs.
bq24105 Also for LiFePO4 Battery (see Using bq24105 to Charge the LiFePO4 Battery).
Integrated Synchronous Fixed-Frequency PWM Controller Operating at 1.1 MHz With 0% to 100% Duty Cycle.
Integrated Power FETs for Up To 2-A Charge Rate.
High-Accuracy Voltage and Current Regulation.
Available in Both Stand-Alone (Built-In Charge Ma.
