AWR1642 - FMCW Radar sensor

Description

The AWR1642 device is an integrated single-chip FMCW radar sensor capable of operation in the 76- to 81-GHz band.

The device is built with TI’s low-power 45-nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor.

Features

  • FMCW transceiver.
  • Integrated PLL, transmitter, receiver, Baseband, and ADC.
  • 76- to 81-GHz coverage with 4 GHz available bandwidth.
  • Four receive channels.
  • Two transmit channels.
  • Ultra-accurate chirp (timing) engine based on fractional-N PLL.
  • TX power: 12 dBm.
  • RX noise figure:.
  • 14 dB (76 to 77 GHz).
  • 15 dB (77 to 81 GHz).
  • Phase noise at 1 MHz:.
  • 95 dBc/Hz (76 to 77 GHz).

📥 Download Datasheet

📁 Similar Datasheet

  • AWR0900 - 900 MHz Receiver MMIC (Anadigics)
Other Datasheets by Texas Instruments
  • AWR1243 - FMCW Transceiver
  • AWR1443 - FMCW Radar Sensor
  • AWR1843 - Single-Chip 77- to 79-GHz FMCW Radar Sensor
  • AWR2243 - Single-Chip 76- to 81-GHz FMCW Transceiver
  • AWR2544 - 76-81GHz FMCW Radar SoC
  • AWR2943 - 76 to 81GHz FMCW Radar Sensor
  • AWR2944 - 76 to 81GHz FMCW Radar Sensor
  • AWR2944LC - 76 to 81GHz FMCW Radar Sensor

Full PDF Text Transcription

Click to expand full text

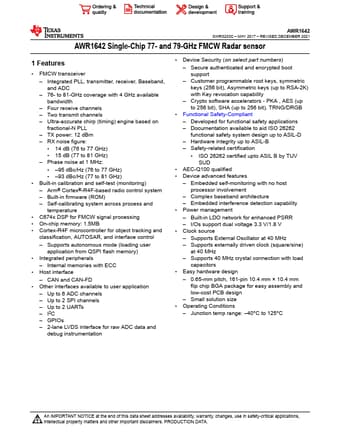

AWR1642 SWRS203C – MAY 2017 – REVISED DECEMBER 2021 AWR1642 Single-Chip 77- and 79-GHz FMCW Radar sensor 1 Features • FMCW transceiver – Integrated PLL, transmitter, receiver, Baseband, and ADC – 76- to 81-GHz coverage with 4 GHz available bandwidth – Four receive channels – Two transmit channels – Ultra-accurate chirp (timing) engine based on fractional-N PLL – TX power: 12 dBm – RX noise figure: • 14 dB (76 to 77 GHz) • 15 dB (77 to 81 GHz) – Phase noise at 1 MHz: • –95 dBc/Hz (76 to 77 GHz) • –93 dBc/Hz (77 to 81 GHz) • Built-in calibration and self-test (monitoring) – Arm® Cortex®-R4F-based radio control system – Built-in firmware (ROM) – Self-calibrating system across process and temperature • C674x DSP for FMCW signal processing • On-chip memory: 1.
