ATL432LI-Q1, ATL431LI-Q1 Datasheet - Texas Instruments

ATL432LI-Q1 Programmable Shunt Regulator

The ATL43xLI-Q1 is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. Its output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V with two external resistors. The device has.

ATL432LI-Q1 Features

* 1 Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature

* Reference voltage tolerance at 25°C

* 0.5% (B grade)

* 1% (A grade)

ATL431LI-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: ATL432LI-Q1, ATL431LI-Q1. Please refer to the document for exact specifications by model.

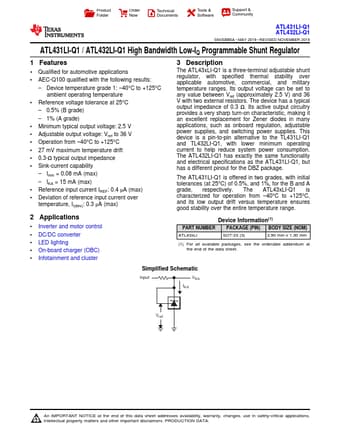

ATL432LI-Q1 Datasheet Preview Page 2 ATL432LI-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

ATL432LI-Q1, ATL431LI-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.39 MB

Description:

Programmable shunt regulator.

Note:

This datasheet PDF includes multiple part numbers: ATL432LI-Q1, ATL431LI-Q1.
Please refer to the document for exact specifications by model.
