Datasheet Details

Part number	AM2634
Manufacturer	Texas Instruments
File Size	3.54 MB
Description	Microcontrollers
Datasheet	AM2634-etcTI.pdf

AM2634 Product details

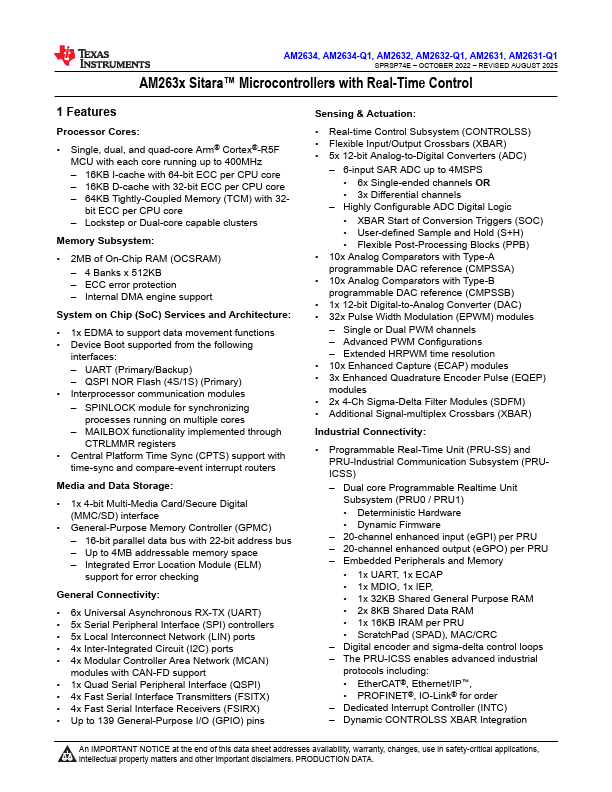

Features

Processor Cores:.
Single, dual, and quad-core Arm® Cortex®-R5F MCU with each core running up to 400MHz.
16KB I-cache with 64-bit ECC per CPU core.
16KB D-cache with 32-bit ECC per CPU core.
64KB Tightly-Coupled Memory (TCM) with 32bit ECC per CPU core.
Lockstep or Dual-core capable clusters Memory Subsystem:.
2MB of On-Chip RAM (OCSRAM).
4 Banks x 512KB.
ECC error protection.
Internal DMA engine support System on Ch.
