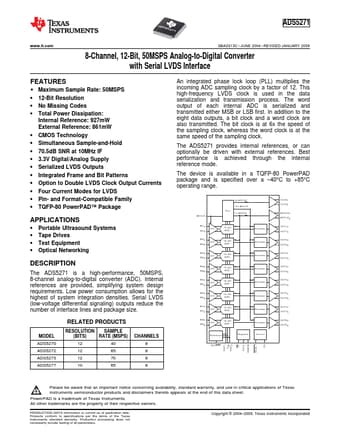

ADS5271 Datasheet Preview — Preview of ADS5271 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ADS5271
Manufacturer	Texas Instruments
File Size	942.27 KB
Description	Analog-to-Digital Converters
Datasheet	ADS5271-etcTI.pdf

ADS5271 Product details

Description

The ADS5271 is a high-performance, 50MSPS, 8-channel analog-to-digital converter (ADC).

Features

1.
23 Maximum Sample Rate: 50MSPS.
12-Bit Resolution.
No Missing Codes.
Total Power Dissipation: Internal Reference: 927mW External Reference: 861mW.
CMOS Technology.
Simultaneous Sample-and-Hold.
70.5dB SNR at 10MHz IF.
3.3V Digital/Analog Supply.
Serialized LVDS Outputs.
Integrated Frame and Bit Patterns.
Option to Double LVDS Clock Output Currents.
Four Current Modes for LVDS.
