ADS1251 - Analog-To-Digital Converter

Description

The ADS1251 is a precision, wide dynamic range, deltasigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from a single +5V supply.

Features

  • q 24 BITS.
  • NO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADS1250 20-Bit Data Acquisition System ANALOG-TO-DIGITAL CONVERTER Burr-Brown Corporation
ADS1252 ANALOG-TO-DIGITAL CONVERTER Burr-Brown Corporation
ADS1253 ANALOG-TO-DIGITAL CONVERTER Burr-Brown
ADS1254 24-Bit 20kHz Low Power ANALOG-TO-DIGITAL CONVERTER Burr-Brown Corporation
ADS1201 High Dynamic Range DELTA-SIGMA MODULATOR Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
ADS1255 Analog-To-Digital Converter
ADS1256 Analog-To-Digital Converter
ADS1257 30-kSPS 4-Channel 24-Bit ADC
ADS1258 24-Bit ADC
ADS1258-EP 24-Bit ADC

Full PDF Text Transcription

Click to expand full text

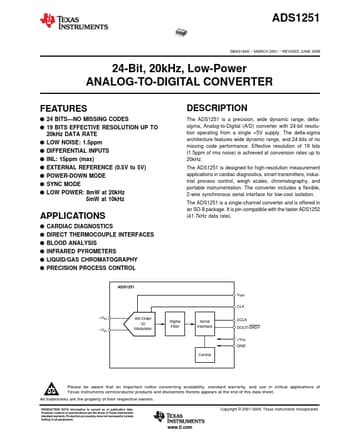

ADS1251 ADS1251 SBAS184D – MARCH 2001 – REVISED JUNE 2009 24-Bit, 20kHz, Low-Power ANALOG-TO-DIGITAL CONVERTER FEATURES q 24 BITS—NO MISSING CODES q 19 BITS EFFECTIVE RESOLUTION UP TO 20kHz DATA RATE q LOW NOISE: 1.5ppm q DIFFERENTIAL INPUTS q INL: 15ppm (max) q EXTERNAL REFERENCE (0.5V to 5V) q POWER-DOWN MODE q SYNC MODE q LOW POWER: 8mW at 20kHz 5mW at 10kHz APPLICATIONS q CARDIAC DIAGNOSTICS q DIRECT THERMOCOUPLE INTERFACES q BLOOD ANALYSIS q INFRARED PYROMETERS q LIQUID/GAS CHROMATOGRAPHY q PRECISION PROCESS CONTROL DESCRIPTION The ADS1251 is a precision, wide dynamic range, deltasigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from a single +5V supply. The delta-sigma architecture features wide dynamic range, and 24 bits of no missing code performance.
