79L05 - 3-Terminal Negative Regulator

Texas Instruments

The 79L05 by Texas Instruments is a 3-Terminal Negative Regulator. Below is the official datasheet preview.

📥 Download Datasheet

79L05 3-Terminal Negative Regulator by Texas Instruments - Datasheet Preview — Official preview page of the 79L05 3-Terminal Negative Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	79L05
Manufacturer	Texas Instruments
File Size	1.27 MB
Description	3-Terminal Negative Regulator
Datasheet	79L05-etcTI.pdf
Additional preview pages of the 79L05 datasheet.

79L05 Product details

Description

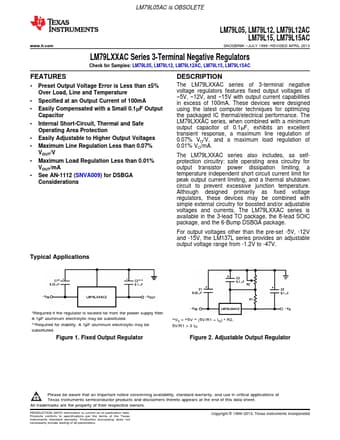

The LM79LXXAC series of 3-terminal negative voltage regulators

Features

1.
2 Preset Output Voltage Error is Less than ±5% Over Load, Line and Temperature.
Specified at an Output Current of 100mA.
Easily Compensated with a Small 0.1μF Output Capacitor.
Internal Short-Circuit, Thermal and Safe Operating Area Protection.
Easily Adjustable to Higher Output Voltages.
Maximum Line Regulation Less than 0.07% VOUT/V.
Maximum Load Regulation Less than 0.01% VOUT/mA.
See AN-1112 (SNVA009) for DSBGA Conside.
