74HC366 - Three-State Non-Inverting/Inverting

Download the 74HC366 datasheet PDF. This datasheet also covers the 74HC365 variant, as both devices belong to the same three-state non-inverting/inverting family and are provided as variant models within a single manufacturer datasheet.

Description

The ’HC365, ’HCT365, and ’HC366 silicon gate CMOS threestate buffers are general purpose high-speed non-inverting and inverting buffers.

They have high drive current outputs which enable high speed operation even when driving large bus capacitances.

Features

  • Buffered Inputs.
  • High Current Bus Driver Outputs.
  • Typical Propagation Delay CL = 15pF, TA = 25oC tPLH, tPHL = 8ns at VCC = 5V,.
  • Fanout (Over Temperature Range) - Standard Outputs.
  • 10 LSTTL Loads - Bus Driver Outputs.
  • . . . 15 LSTTL Loads.
  • Wide Operating Temperature Range . . . -55oC to 125oC.
  • Balanced Propagation Delay and Transition Times.
  • Significant Power Reduction Compa.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC365-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
74HC366 Hex buffer/line driver nexperia
74HC366 Hex buffer/line driver Philips
74HC366-Q100 Hex buffer/line driver nexperia
74HC366D Hex buffer/line driver nexperia
74HC365 Hex buffer/line driver nexperia

Other Datasheets by Texas Instruments

Part Number Description
74HC365 Three-State Non-Inverting/Inverting
74HC367 Three-State Non-Inverting and Inverting
74HC368 Three-State Non-Inverting and Inverting
74HC30 8-Input NAND Gate
74HC32 Quad 2-Input OR Gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

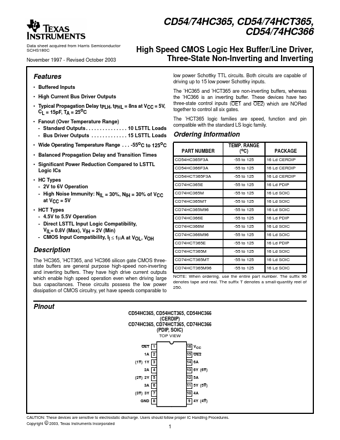

Data sheet acquired from Harris Semiconductor SCHS180C November 1997 - Revised October 2003 CD54/74HC365, CD54/74HCT365, CD54/74HC366 High Speed CMOS Logic Hex Buffer/Line Driver, Three-State Non-Inverting and Inverting [ /Title (CD74 HC365 , CD74 HCT36 5, CD74 HC366 , CD74 HCT36 6) /Subject (High Speed Features • Buffered Inputs • High Current Bus Driver Outputs • Typical Propagation Delay CL = 15pF, TA = 25oC tPLH, tPHL = 8ns at VCC = 5V, • Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads • Wide Operating Temperature Range . . .
