74F32 - QUADRUPLE 2-INPUT POSITIVE-OR GATES

Description

These devices contain four independent 2-input OR gates.

B in positive logic.

55°C to 125°C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74F32 Quad 2-input OR gate Philips
74F32 Quad 2-Input OR Gate Fairchild
74F32 Quad 2-Input OR Gate National Semiconductor
74F322 8-bit serial/parallel register Philips
74F322 Octal Serial/Parallel Register Fairchild

Other Datasheets by Texas Instruments

Part Number Description
74F30 8-INPUT POSITIVE-NAND GATES
74F373 OCTAL TRANSPARENT D-TYPE LATCHES
74F374 Octal Edge-Triggered D-Type Flip-Flops
74F377A OCTAL D-TYPE FLIP-FLOP
74F378 HEX D-Type Flip-Flop

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

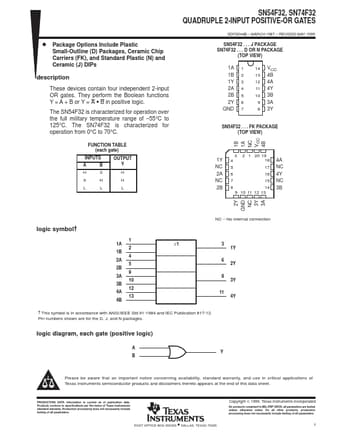

D Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs description These devices contain four independent 2-input OR gates. They perform the Boolean functions Y = A + B or Y = A • B in positive logic. The SN54F32 is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74F32 is characterized for operation from 0°C to 70°C. FUNCTION TABLE (each gate) INPUTS A B OUTPUT Y H X H X H H L L L SN54F32, SN74F32 QUADRUPLE 2-INPUT POSITIVE-OR GATES SDFS044B – MARCH 1987 – REVISED MAY 1999 SN54F32 . . . J PACKAGE SN74F32 . . . D OR N PACKAGE (TOP VIEW) 1A 1 1B 2 1Y 3 2A 4 2B 5 2Y 6 GND 7 14 VCC 13 4B 12 4A 11 4Y 10 3B 9 3A 8 3Y SN54F32 . . .
