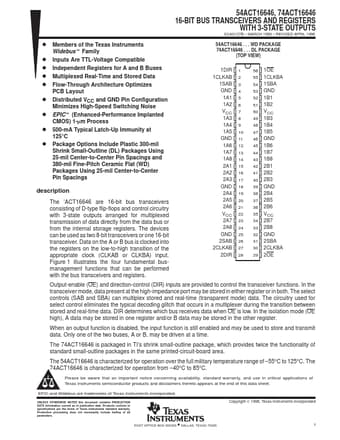

74ACT16646 16-BIT BUS TRANSCEIVERS-REGISTERS

The ’ACT16646 are 16-bit bus transceivers consisting of D-type flip-flops and control circuitry with 3-state outputs arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. The devices can be used as two 8-bit transceivers or one 16-bit transc.

D Members of the Texas Instruments Widebust Family D Inputs Are TTL-Voltage Compatible D Independent Registers for A and B Buses D Multiplexed Real-Time and Stored Data D Flow-Through Architecture Optimizes PCB Layout D Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise D EPICt (Enhanced-Performance Implanted CMOS) 1-mm Process D 500-mA Typical Latch-Up Immunity at 125°C D Package Options Include Plastic 300-mil Shrink Small-Outline (DL) Packages Using 25-mil Center-t.

74ACT16646 Datasheet (902.35 KB)
