54HCT241, 54HC240 High-Speed CMOS Logic Octal Buffer/Line Drivers

54HCT241 Description

CD54HC240, CD74HC240, CD74HC241, CD54HC244 CD74HC244, CD54HCT240, CD74HCT240, CD54HCT241 CD74HCT241, CD54HCT244, CD74HCT244 SCHS167G * NOVEMBE.
The ’HC240 and ’HCT240 are inverting three-state buffers having two active-low output enables.

54HCT241 Features

* HC/HCT240 Inverting
* HC/HCT241 Non-inverting
* HC/HCT244 Non-inverting
* Typical propagation delay = 8ns at VCC = 5 V, CL = 15 pF, TA = 25℃ for HC240
* Three-state outputs
* Buffered inputs
* High-current bus driver outputs
* Fanout

54HCT241 Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. CD54HC240, CD74HC240, CD74HC241, CD54HC244 CD74HC244, CD54HCT240, CD74HCT240, CD54HCT241 CD74HCT241, CD54HCT244, CD74HCT244 SCHS167G
* NOVEMBER 1998
* REVISED OCTOBER 2022 www. ti. com Table of Contents

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 54HCT241, 54HC240. Please refer to the document for exact specifications by model.

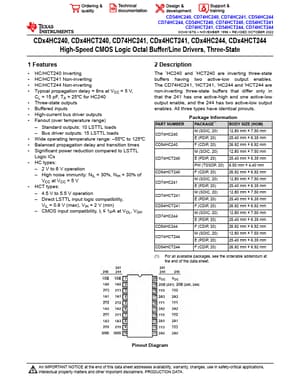

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
54HCT241, 54HC240
Manufacturer
Texas Instruments ↗
File Size
1.56 MB
Datasheet
54HC240-etcTI.pdf
Description
High-Speed CMOS Logic Octal Buffer/Line Drivers
Note
This datasheet PDF includes multiple part numbers: 54HCT241, 54HC240.
Please refer to the document for exact specifications by model.
