54HC112 Dual J-K Negative-Edge-Triggered Flip-Flops

54HC112 Description

SN54HC112, SN74HC112 SCLS099H * DECEMBER 1982 * REVISED JUNE 2022 SNx4HC112 Dual J-K Negative-Edge-Triggered Flip-Flops With Clear and.
The ’HC112 devices contain two independent J-K negative-edge-triggered flip-flops.

54HC112 Features

* Wide operating voltage range of 2 V to 6 V
* Outputs can drive up to 10 LSTTL loads
* Low power consumption, 40-μA max ICC
* Typical tpd = 13 ns
* ±4-mA output drive at 5 V

54HC112 Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54HC112, SN74HC112 SCLS099H
* DECEMBER 1982

📥 Download Datasheet

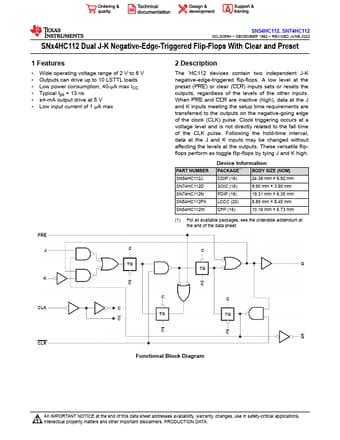

Preview of 54HC112 PDF
