54AC11241 - OCTAL BUFFERS/LINE DRIVERS

Description

This octal buffer or line driver is designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Features

  • a high fan-out. The 54AC11241 is characterized for operation over the full military temperature range of.
  • 55°C to 125°C. The 74AC11241 is characterized for operation from.
  • 40°C to 85°C. 54AC11241, 74AC11241 OCTAL.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
54AC11 Triple 3-Input AND Gate National Semiconductor
54AC10 Triple 3-Input NAND Gate National Semiconductor
54AC109 Dual JK Positive Edge-Triggered Flip-Flop National Semiconductor
54AC125 Quad Buffer National Semiconductor
54AC138 1-of-8 Decoder/Demultiplexer National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
54AC11238 3-Line to 8-Line Decoders/Demultiplecers
54AC11253 DUAL 1-OF-4 DATA SELECTORS/MULTIPLEXERS
54AC11002 QUADRUPLE 2-INPUT POSITIVE-NOR GATES
54AC11010 TRIPLE 3-INPUT POSITIVE-NAND GATES
54AC11011 TRIPLE 3-INPUT POSITIVE-AND GATES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

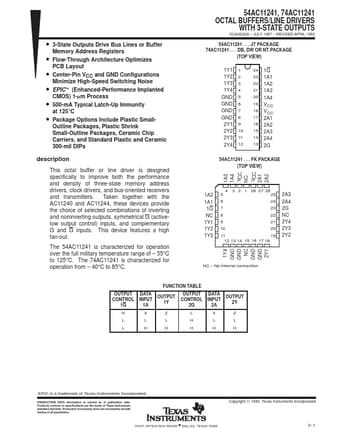

• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers • Flow-Through Architecture Optimizes PCB Layout • Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise t• EPIC (Enhanced-Performance Implanted CMOS) 1-mm Process • 500-mA Typical Latch-Up Immunity at 125°C • Package Options Include Plastic Small- Outline Packages, Plastic Shrink Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs description This octal buffer or line driver is designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
