AS8228, AS8218 Datasheet - austriamicrosystems AG

AS8228 Highly Integrated Single Phase 2 Current Energy Metering Integrated Circuits

The AS8218 / AS8228 are highly integrated CMOS single-phase energy metering devices for fully electronic LCD meter systems. The AS8218 / AS8228 have been designed to ensure the meters full compliance with the international Standards IEC62052 and ANSI. The AS8218 / AS8228 ICs include all the function.

AS8228 Features

* - - Precision single-phase, one or two current input energy measurement front-end including SigmaDelta modulators for A/D-conversion and digital signal processor (DSP). Low current consumption of 5mA, depending on MCU activity. Digital phase correction and selectable gain on both current channels

AS8218_austriamicrosystemsAG.pdf

This datasheet PDF includes multiple part numbers: AS8228, AS8218. Please refer to the document for exact specifications by model.

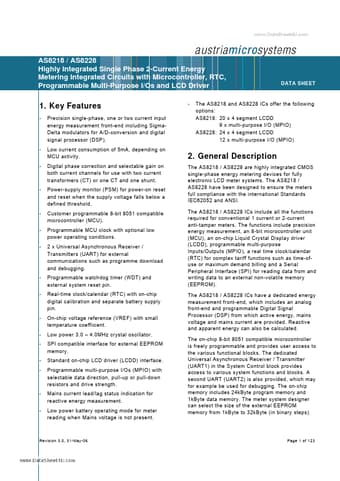

AS8228 Datasheet Preview Page 2 AS8228 Datasheet Preview Page 3

Datasheet Details

Part number:

AS8228, AS8218

Manufacturer:

austriamicrosystems AG

File Size:

1.40 MB

Description:

Highly integrated single phase 2 current energy metering integrated circuits.

Note:

This datasheet PDF includes multiple part numbers: AS8228, AS8218.
Please refer to the document for exact specifications by model.
