AS3801 - CDMA/FM TRANSMIT AGC AMPLIFIER AS3801

AS3801 Description

Preliminary Data Sheet AS3801 CDMA/FM TRANSMIT AGC AMPLIFIER AS3801 Austria Mikro Systeme International AG Key .
The AS3801 is a gain controlled amplifier designed for the transmit section of dual mode CDMA/FDM, TDMA/FDM or FM/FDM cellular phones.

AS3801 Features

* r r r r r r r r r Supports dual mode operation. -45dB to +40db gain control guaranteed. High OIP3 of 15dBm @ max. gain @ -51dBm input power. Single 3.6V supply. Temperature and supply stabilized. Power down feature. 100MHz to 300MHz operation. Silicon BiCMOS process. Miniature surface mount 16 pin,

AS3801 Applications

* but can also be used in wideband applications. Applications r Digital cellular systems with transmission methods: CDMA/FDM, TDMA/FDM, FM/FDM and TDMA/TDD. Examples: IS-95 CDMA, IS-54 DAMPS, AMPS, PWT. Cordless phones analog / digital. General purpose linear IF amp’ s. WLL / WLAN. Compatibility The

📥 Download Datasheet

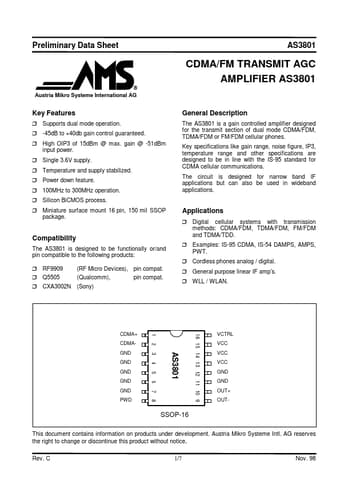

Preview of AS3801 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS3801
Manufacturer
austriamicrosystems AG
File Size
75.65 KB
Datasheet
AS3801_austriamicrosystemsAG.pdf
Description
CDMA/FM TRANSMIT AGC AMPLIFIER AS3801
