AS1703, AS1702 1.8W Single-Channel Audio Power Amplifiers

AS1703 Description

Datasheet AS1702 - AS1705 1.8W Single-Channel Audio Power Amplifiers 1 General .
The AS1702 - AS1705 are single-channel differential audio poweramplifiers designed to drive 4 and 8Ω loads.

AS1703 Features

* 2.7V to 5.5V (VCC) Single-Supply Operation THD+N: 1.8W into 4Ω at 1% (per Channel) Differential Input Adjustable Gain Option (AS1702) Internal Fixed Gain to Reduce External Component Count (AS1703, AS1704, AS1705)

AS1703 Applications

* The devices are ideal as audio front-ends for battery powered audio devices such as MP3 and CD players, mobile phones, PDAs, portable DVD players, and any other hand-held battery-powered device. Single Supply 2.7V to 5.5V 9 VCC 4 IN+ 2 IN- 1 SHDN 3 SHDM +
* AS1702/AS1703/ AS1704/AS1705 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AS1703, AS1702. Please refer to the document for exact specifications by model.

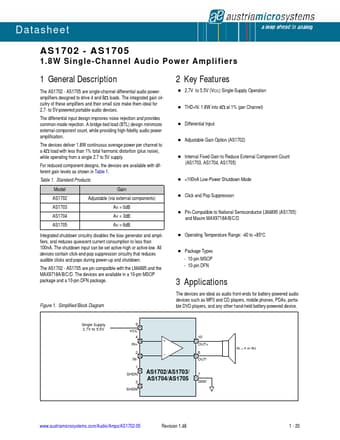

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS1703, AS1702
Manufacturer
austriamicrosystems AG
File Size
315.59 KB
Datasheet
AS1702_austriamicrosystemsAG.pdf
Description
1.8W Single-Channel Audio Power Amplifiers
Note
This datasheet PDF includes multiple part numbers: AS1703, AS1702.
Please refer to the document for exact specifications by model.
