AS8525 LIN Transceiver

AS8525 Description

AS8525 LIN Transceiver with Voltage Regulators, Programmable Gain High Side Amplifier, and Voltage Attenuator 1 General .
The AS8525 is a companion IC for automotive battery sensor systems for both low-side and high-side current sensing applications.

AS8525 Features

* Operating voltage 4.3V to 18V, max. 42V for 500 ms
* Two linear low-drop voltage regulators: VCC = 3.3V with 50mA drive capability
* Typical 50µA quiescent current in standby mode
* Typical 35µA quiescent current in sleep mode
* Precision voltage attenuator with power down faci

AS8525 Applications

* The device provides two regulated 3.3V supplies from the battery supply, attenuated battery voltage in differential form, and amplified version of a high-side current-sense element’s voltage with a translated common-mode voltage. The device also communicates the system output to a LIN bus. AS8525 i

📥 Download Datasheet

Preview of AS8525 PDF

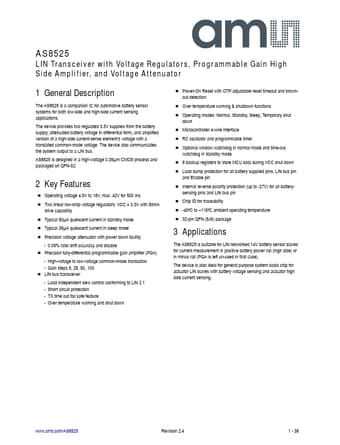

datasheet Preview Page 2 datasheet Preview Page 3
