ZT3491E, ZT3483E - Low Power 3V 250kbps/16Mbps RS485E Transceivers

Name: ZT3491E
SKU: ZT3491E-1410220

Zywyn

📥 Download Datasheet

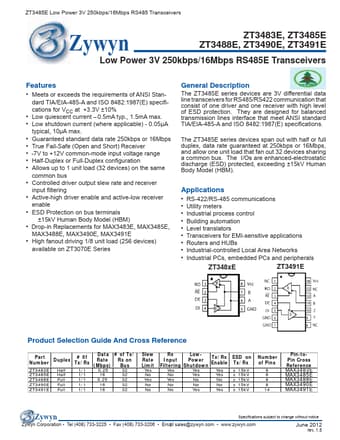

ZT3491E Datasheet Preview — This datasheet PDF includes multiple part numbers: ZT3491E, ZT3483E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ZT3491E, ZT3483E
Manufacturer	Zywyn
File Size	569.65 KB
Description	Low Power 3V 250kbps/16Mbps RS485E Transceivers
Datasheet	ZT3483E-Zywyn.pdf
Note	This datasheet PDF includes multiple part numbers: ZT3491E, ZT3483E. Please refer to the document for exact specifications by model.

ZT3491E Product details

Description

The ZT3485E series devices are 3V differential data line transceivers for RS485/RS422 communication that consist of one driver and one receiver with high level of ESD protection.

Features

Meets or exceeds the requirements of ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E) speciﬁcations for VCC at +3.3V ±10%.
Low quiescent current.
0.5mA typ. , 1.5mA max.
Low shutdown current (where applicable) - 0.05μA typical, 10μA max.
Guaranteed standard data rate 250kbps or 16Mbps.
True Fail-Safe (Open and Short) Receiver.
-7V to +12V common-mode input voltage range.
Half-Duplex or Full-Duplex conﬁguration.
Al.
