SSCD210H - Schottky Barrier Diode

SSCD210H Description

ZOWIE Schottky Barrier Diode SSCD210H .

SSCD210H Features

* Halogen-free type
* Compliance to RoHS product
* Lead less chip form, no lead damage
* Low power loss, High efficiency
* High current capability, low VF
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 OUTLINE DIMENSIONS Case : 1206 1.90 ± 0

SSCD210H Applications

* Portable equipment battery applications
* General rectification
* DC / DC Converter
* Telecommunication 0.96-+ 0.2 0.1 0.70 ± 0.2 0.70 ± 0.2 1.50 MIN. 1.0 MIN. (100V / 2.0A) Unit : mm Mounting Pad Layout 2.00 MAX. 4.0 REF. MECHANICAL DATA Case : Packed with FRP substrate and

📥 Download Datasheet

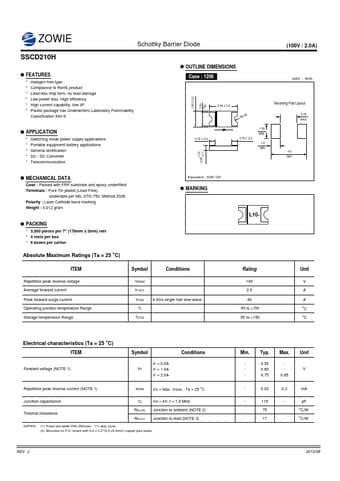

Preview of SSCD210H PDF
datasheet Preview Page 2

Datasheet Details

Part number
SSCD210H
Manufacturer
Zowie
File Size
49.92 KB
Datasheet
SSCD210H-Zowie.pdf
Description
Schottky Barrier Diode
