MM3Z5243BH - SILICON PLANAR ZENER DIODES

Product Overview

Zowie

Datasheet Details

Part number	MM3Z5243BH
Manufacturer	Zowie
File Size	129.64 KB
Description	SILICON PLANAR ZENER DIODES
Datasheet	MM3Z5243BH Datasheet
Note	This datasheet PDF includes multiple part numbers: MM3Z5243BH, MM3Z5221BH. Please refer to the document for exact specifications by model.

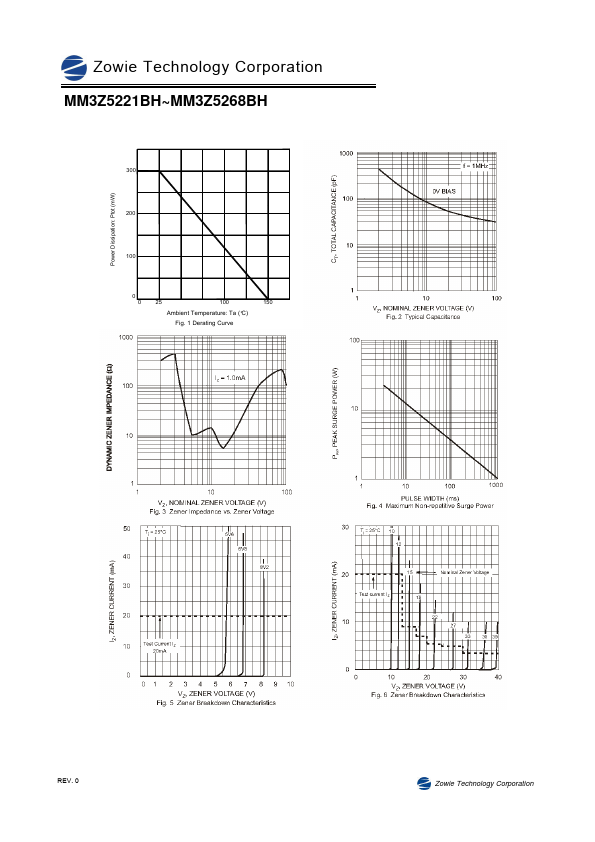

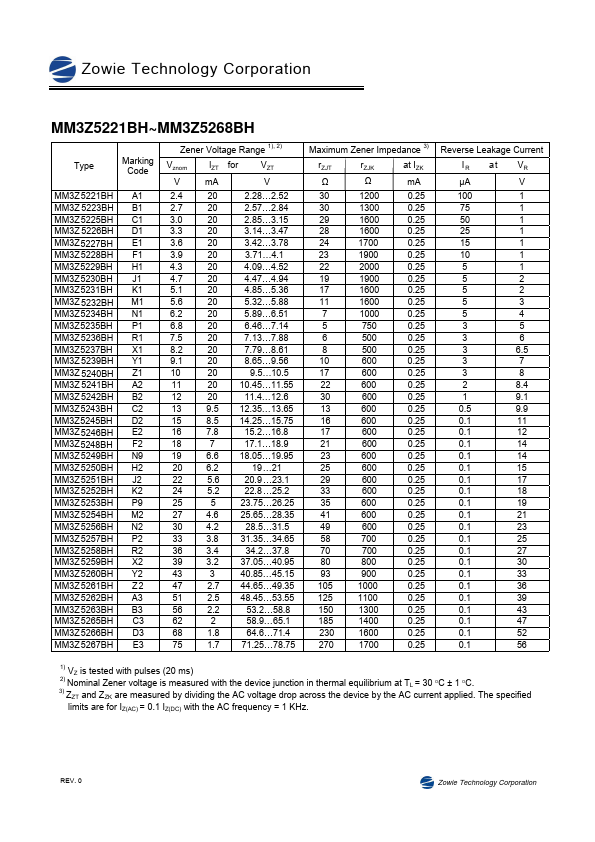

Additional preview pages of the MM3Z5243BH datasheet.

Product details

Description

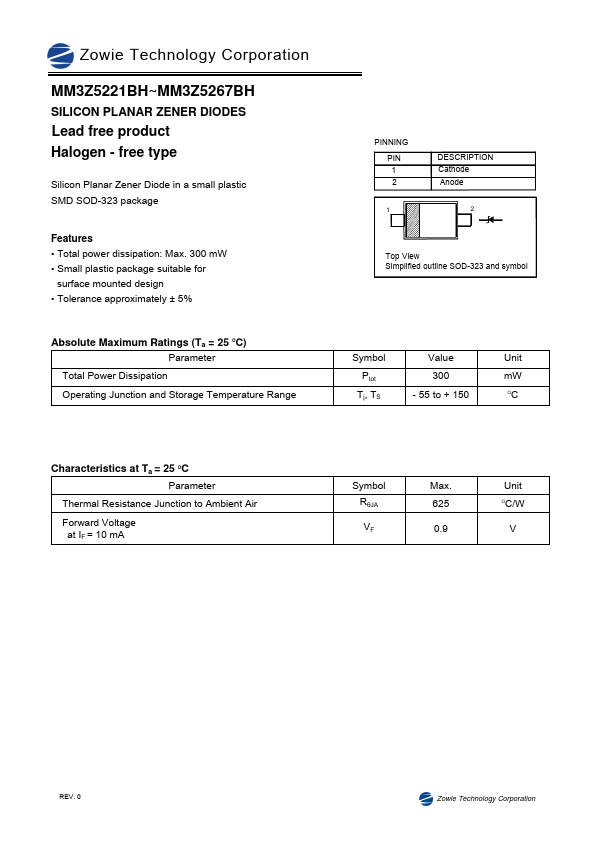

Cathode Anode 2 Top View Simplified outline SOD-323 and symbol Symbol Value Unit Ptot 300 mW Tj, TS - 55 to + 150 OC Characteristics at Ta = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 10 mA Symbol RșJA VF Max.625 0.9 Unit OC/W V REV.0 Zowie Technology Corporation Zowie Technology Corporation MM3Z5221BH~MM3Z5268BH Type Marking Code MM3Z 5221BH A1 MM3Z 5223BH B1 MM3Z 5225BH C1 MM3Z 5226BH D1 MM3Z5227BH E1 MM3Z 5228BH F1 MM3Z5229BH H1 M

Features

Total power dissipation: Max. 300 mW.
Small plastic package suitable for surface mounted design.
Tolerance approximately ± 5% Absolute Maximum Ratings (Ta = 25 OC) Parameter Total Power Dissipation Operating Junction and Storage Temperature Range.
