SSCD104RSH - Schottky Barrier Diode

SSCD104RSH Description

ZOWIE Schottky Barrier Diode SSCD104RSH .

SSCD104RSH Features

* Halogen-free type
* Compliance to RoHS product
* Lead less chip form, no lead damage
* Low power loss, High efficiency
* High current capability, low VF

SSCD104RSH Applications

* Portable equipment battery applications
* High frequency rectification
* DC / DC Converter
* Telecommunication OUTLINE DIMENSIONS Case : 1206-S 1.60 ± 0.1 3.40 ± 0.1 R0.40 1.50 Typ. 0.70 ± 0.2 0.70 ± 0.2 (40V / 1.0A) Unit : mm Mounting Pad Layout 1.50 MIN. 1.0 MIN. 2.00

📥 Download Datasheet

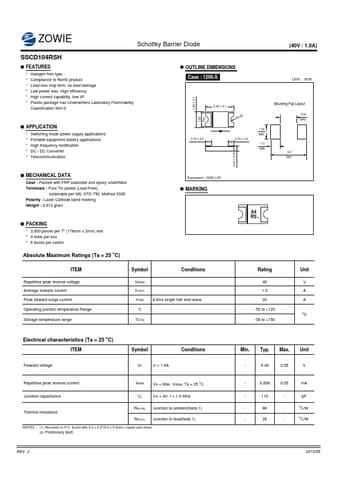

Preview of SSCD104RSH PDF
datasheet Preview Page 2

Datasheet Details

Part number
SSCD104RSH
Manufacturer
Zowie Technology
File Size
46.62 KB
Datasheet
SSCD104RSH-ZowieTechnology.pdf
Description
Schottky Barrier Diode
