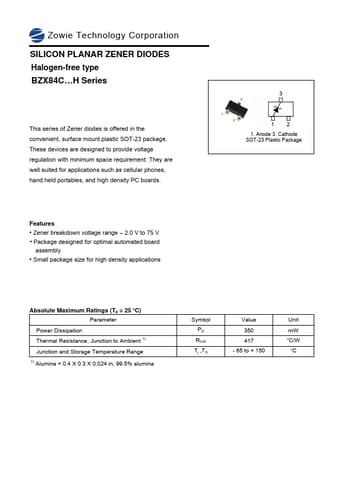

Zowie Technology Corporation SILICON PLANAR ZENER DIODES
Halogen-free type BZX84C…H Series
This series of Zener diodes is offered in the convenient, surface mount plastic SOT-23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Features • Zener breakdown voltage range – 2.0 V to 75 V • Package designed for optimal automated board
assembly • Small package size for high density applications
3
3
1 2
12
1. Anode 3. Cathode SOT-23 Plastic Package
Absolute Maximum Ratings (Ta = 25 OC) Parameter
Power Dissipation Thermal Resistance, Junction to Ambient 1) Junction and Storage Temperature Range
1) Alumina = 0.4 X 0.3 X 0.024 in, 99.
