Z86L92 - IR MICROCONTROLLER

Name: Z86L92
SKU: Z86L92-286110

Zilog.

📥 Download Datasheet

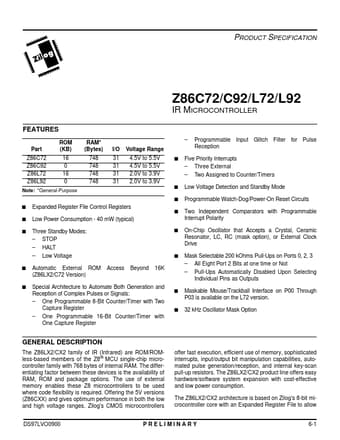

Z86L92 Datasheet Preview — Preview of Z86L92 PDF

Datasheet Details

Part number	Z86L92
Manufacturer	Zilog.
File Size	364.11 KB
Description	IR MICROCONTROLLER
Datasheet	Z86L92_ZilogInc..pdf

Z86L92 Product details

Description

The Z86LX2/CX2 family of IR (Infrared) are ROM/ROMless-based members of the Z8® MCU single-chip microcontroller family with 768 bytes of internal RAM.

Features

Part Z86C72 Z86C92 Z86L72 Z86L92 ROM (KB) 16 0 16 0 RAM.
(Bytes) 748 748 748 748.
I/O 31 31 31 31 Voltage Range 4.5V to 5.5V 4.5V to 5.5V 2.0V to 3.9V 2.0V to 3.9V s 1 Programmable Input Glitch Filter for Pulse Reception Five Priority Interrupts.
Three External.
Two Assigned to Counter/Timers Low Voltage Detection and Standby Mode Programmable Watch-Dog/Power-On Reset Circuits Two Independent Comparators with Programmable Interrupt Polarity On-Chip Oscillator th.
