Z86L70 - IR/Low-Voltage Microcontroller

Name: Z86L70
SKU: Z86L70-286089

Zilog.

📥 Download Datasheet

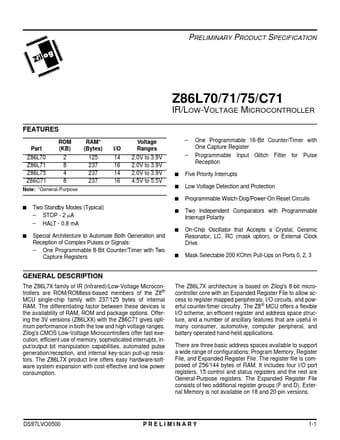

Z86L70 Datasheet Preview — Preview of Z86L70 PDF

Datasheet Details

Part number	Z86L70
Manufacturer	Zilog.
File Size	349.71 KB
Description	IR/Low-Voltage Microcontroller
Datasheet	Z86L70_ZilogInc..pdf

Z86L70 Product details

Description

The Z86L7X family of IR (Infrared)/Low-Voltage Microcontrollers are ROM/ROMless-based members of the Z8® MCU single-chip family with 237/125 bytes of internal RAM.

Features

Part Z86L70 Z86L71 Z86L75 Z86C71 ROM (KB) 2 8 4 8 RAM.
(Bytes) 125 237 237 237 I/O 14 16 14 16 Voltage Ranges 2.0V to 3.9V 2.0V to 3.9V 2.0V to 3.9V 4.5V to 5.5V.
s s s s 1 One Programmable 16-Bit Counter/Timer with One Capture Register Programmable Input Glitch Filter for Pulse Reception Five Priority Interrupts Low Voltage Detection and Protection Programmable Watch-Dog/Power-On Reset Circuits Two Independent Comparators with Programmable Interrupt Polarity On-Chip Os.
