Z86K15 - CMOS Z8 8-Bit MCU Keyboard Controllers

Name: Z86K15
SKU: Z86K15-286080

Zilog.

📥 Download Datasheet

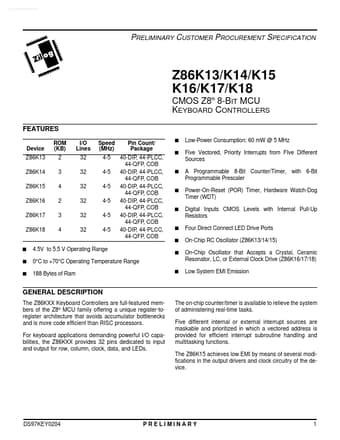

Z86K15 Datasheet Preview — Preview of Z86K15 PDF

Datasheet Details

Part number	Z86K15
Manufacturer	Zilog.
File Size	169.69 KB
Description	CMOS Z8 8-Bit MCU Keyboard Controllers
Datasheet	Z86K15_ZilogInc..pdf

Z86K15 Product details

Description

The Z86KXX Keyboard Controllers are full-featured members of the Z8® MCU family offering a unique register-toregister architecture that avoids accumulator bottlenecks and is more code efficient than RISC processors.

Features

Device Z86K13 Z86K14 Z86K15 Z86K16 Z86K17 Z86K18 ROM (KB) 2 3 4 2 3 4 I/O Lines 32 32 32 32 32 32 Speed (MHz) 4-5 4-5 4-5 4-5 4-5 4-5 Pin Count/ Package 40-DIP, 44-PLCC, 44-QFP, COB 40-DIP, 44-PLCC, 44-QFP, COB 40-DIP, 44-PLCC, 44-QFP, COB 40-DIP, 44-PLCC, 44-QFP, COB 40-DIP, 44-PLCC, 44-QFP, COB 40-DIP, 44-PLCC, 44-QFP, COB s s 1 Low-Power Consumption: 60 mW @ 5 MHz Five Vectored, Priority Interrupts from FIve Different Sources A Programmable 8-Bit Counter/Timer, with 6-Bit Programmable Presc.
