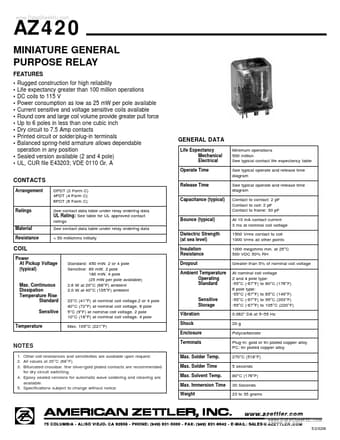

AZ421, AZ420 Miniature General Purpose Relay

AZ421 Description

www.DataSheet4U.com AZ420 MINIATURE GENERAL PURPOSE RELAY .
aterial Maximum Switched Load Switching Range at 28 VDC or 115 VAC (Typical) 10LUS Bifurcated Max.

AZ421 Features

* Rugged construction for high reliability Life expectancy greater than 100 million operations DC coils to 115 V Power consumption as low as 25 mW per pole available Current sensitive and voltage sensit

AZ421 Applications

* aterial Maximum Switched Load Switching Range at 28 VDC or 115 VAC (Typical) 10LUS Bifurcated Max. Power: crossbar 56 W or contact 230 VA Fine silver/ Max. current: Dry circuit gold plated 2 Amps to 2 Amps Max. voltage: 150† VDC or 300 VAC 1WLUS Single crossbar contact Max. power 100 W or 350 VA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ421, AZ420. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ421, AZ420
Manufacturer
Zettler relays
File Size
326.53 KB
Datasheet
AZ420_Zettlerrelays.pdf
Description
Miniature General Purpose Relay
Note
This datasheet PDF includes multiple part numbers: AZ421, AZ420.
Please refer to the document for exact specifications by model.
