ZDSD01GLGEAG, ZDSD01G - SD NAND

The ZDSD01GLGEAG by Zetta is a SD NAND. Below is the official datasheet preview.

Datasheet Details

Part number	ZDSD01GLGEAG, ZDSD01G
Manufacturer	Zetta
File Size	312.07 KB
Description	SD NAND
Datasheet	ZDSD01G-Zetta.pdf
Note	This datasheet PDF includes multiple part numbers: ZDSD01GLGEAG, ZDSD01G. Please refer to the document for exact specifications by model.

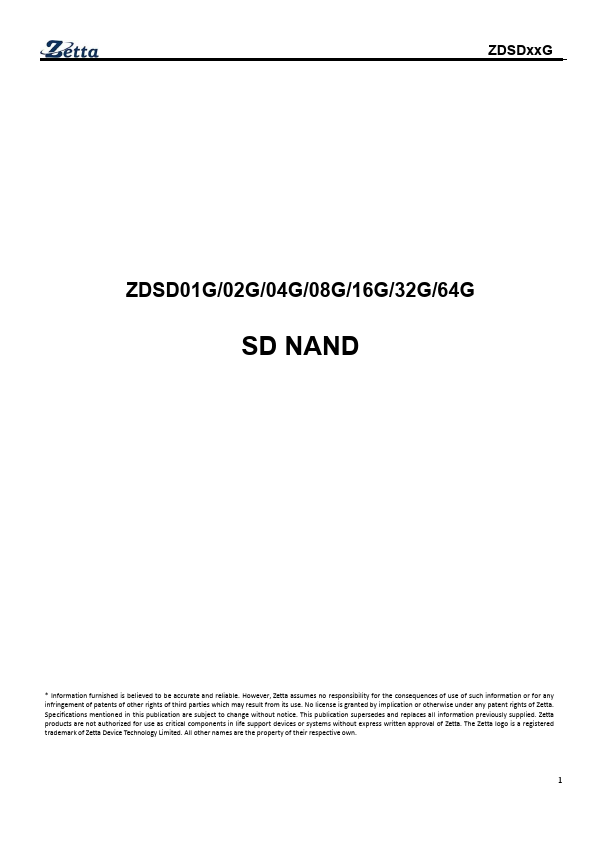

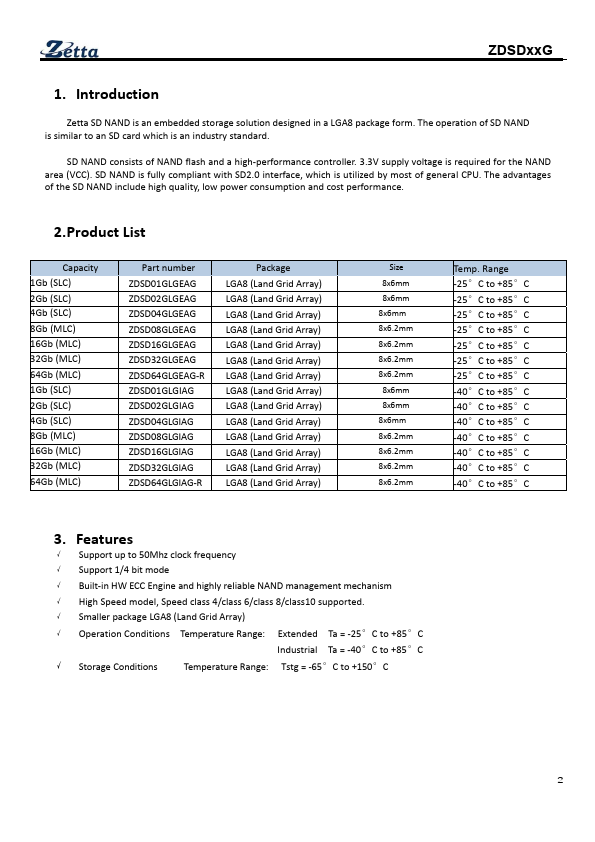

Additional preview pages of the ZDSD01GLGEAG datasheet.

Support up to 50Mhz clock frequency.
Support 1/4 bit mode.
Built‐in HW ECC Engine and highly reliable NAND management mechanism.
High Speed model, Speed class 4/class 6/class 8/class10 supported.
Smaller package LGA8 (Land Grid Array).
Operation Conditions Temperature Range: Extended Ta = ‐25°C to +85°C Industrial Ta = ‐40°C to +85°C.

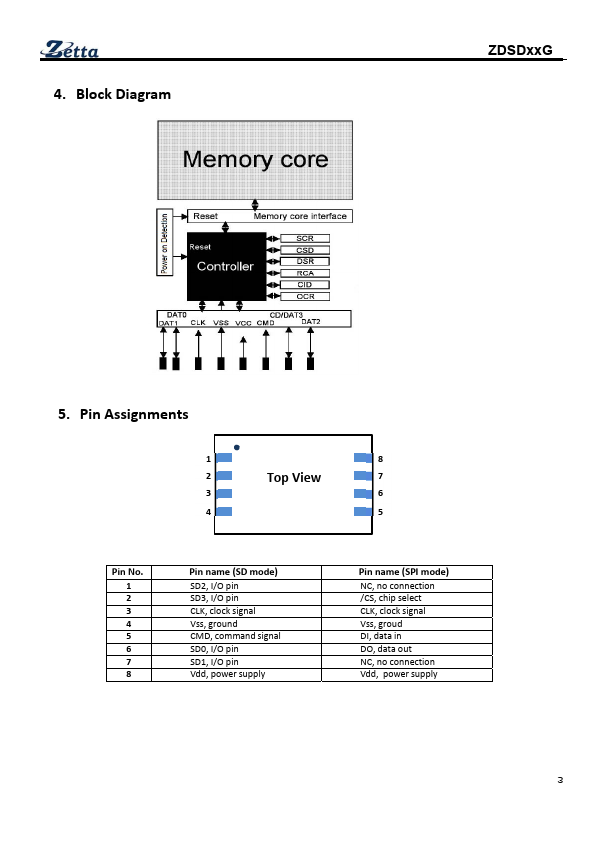

Storage Conditions Temperature Range: Tstg = ‐65°C to +150°C 2 4. Block Diagram ZDSDxx.
