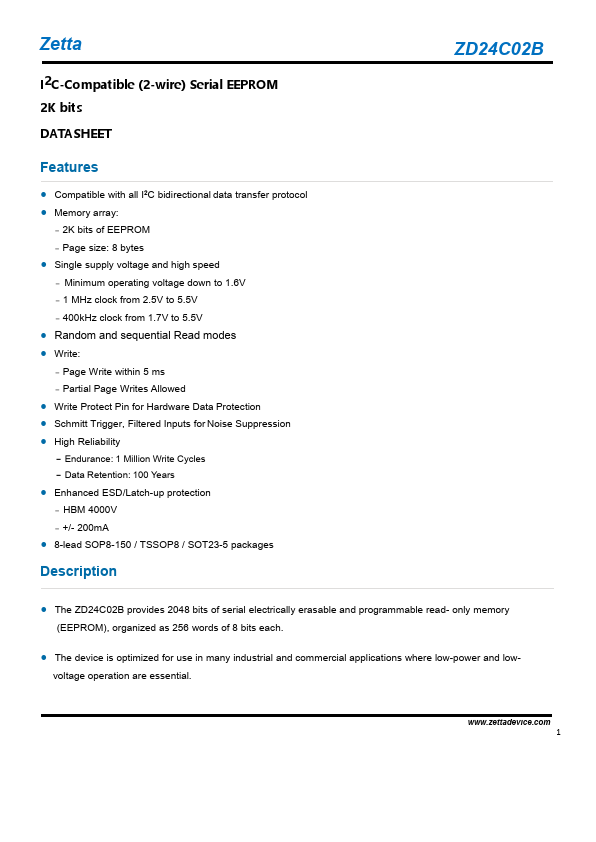

ZD24C02B - I2C-Compatible 2-wire EEPROM

ZD24C02B Datasheet Preview — Preview of ZD24C02B PDF

Datasheet Details

Part number	ZD24C02B
Manufacturer	Zetta
File Size	936.13 KB
Description	I2C-Compatible 2-wire EEPROM
Datasheet	ZD24C02B-Zetta.pdf

ZD24C02B Product details

Description

ZD24C02B The ZD24C02B provides 2048 bits of serial electrically erasable and programmable read- only memory (EEPROM), organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and lowvoltage operation are essential.

Features

Compatible with all I2C bidirectional data transfer protocol.
Memory array:.
2K bits of EEPROM.
Page size: 8 bytes.
Single supply voltage and high speed.
Minimum operating voltage down to 1.6V.
1 MHz clock from 2.5V to 5.5V.
400kHz clock from 1.7V to 5.5V.
Random and sequential Read modes.
Write:.
Page Write within 5 ms.
Partial Page Writes Allowed.
Write Protect Pin for Hardware Data Protection.
S.
