ZTLV431 - Cost effective shunt regulator

Name: ZTLV431
SKU: ZTLV431-566830

Zetex Semiconductors

📥 Download Datasheet

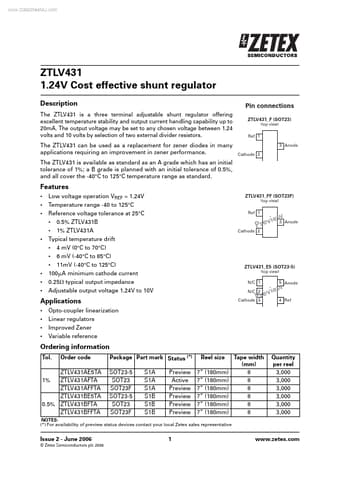

ZTLV431 Datasheet Preview — Preview of ZTLV431 PDF

Datasheet Details

Part number	ZTLV431
Manufacturer	Zetex Semiconductors
File Size	225.80 KB
Description	Cost effective shunt regulator
Datasheet	ZTLV431_ZetexSemiconductors.pdf

ZTLV431 Product details

Description

The ZTLV431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA.

Features

Low voltage operation VREF = 1.24V Temperature range -40 to 125°C Reference voltage tolerance at 25°C.
0.5% ZTLV431B 1% ZTLV431A 4 mV (0°C to 70°C) 6 mV (-40°C to 85°C) 11mV (-40°C to 125°C) ZTLV431_E5 (SOT23-5) (top view) ZTLV431_FF (SOT23F) (top view) Ref 1 Cathode 2 Pre w vie 3 Anode Typical temperature drift 100␮A minimum cathode current 0.25⍀ typical output impedance.
